6080130 3.7V 3.85V 8000mAh Rechargeable Lithium ion Polymer Battery Pack
lithium ion polymer rechargeable lipo 6080130 3.7V 8000mAh battery pack
| 1,Mechanical Characteristics |
| Cell: | 6080130 | PCM: | Yes |
| NTC: | No | Weight: | appr. 137g |
| Configuration: | 1S1P | | |
| 2,Electrical Specification |
| Capacity: | 8000mAh | Nominal Voltage: | 3.7V |
| Energy: | 29.6Wh | Internal Impedance: | less than 180mΩ |
| Max. Charge Voltage: | 4.2V | Discharge Cut Off: | 2.75V |
| Max. Charge Current: | 8000mA | Max. Discharge Current: | 8000mA |
| Standard Charge Current: | 4000mA | Standard Discharge Current: | 4000mA |
| Charge Temp. Range: | 10°C to 45°C | Discharge Temp. Range | -20°C to 60°C |
| Storage Temp. Range | 1 year at -20℃ to +30℃ | Cycle life: | 100 cycles ≥92% |
| 3 moths at -20℃ to +45℃ | 300 cycles ≥88% |
| 1 month at -20℃ to +60℃ | 500 cycles ≥80% |
| 3,Cell protection |
| Overcharge Detection : | 4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV) | Overdischarge Detection: | 2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV) |
| Overcurrent Detection: | 2.5A to 4.0A (9 to 15msec. delay) | Short protection: | Yes |
| | Do not overcharge, force charge, short circuit, disassemble, deform, heat or place the battery near a direct flame. Any of the above actions could cause it to ignite, explode or become damaged. |
| Keep this battery out of the reach of children. |
| When storing the battery or throwing it away, be sure to cover with tape. |
| | Thin format, light weigh, large area, and flexibility in design. |
| Easily customized, Energy density, High capacity. |
| | Smart wearable devices, smart cards, smart electronics |
Bluetooth earphone, power bank,MPS, Tablet PC. laptop,GPS |
| Medical devices, electric children toys, electric shoes, electric blanket. |
| intelligent door lock, intelligent lighting, emergency light, industrial cameras. |
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Cell Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |

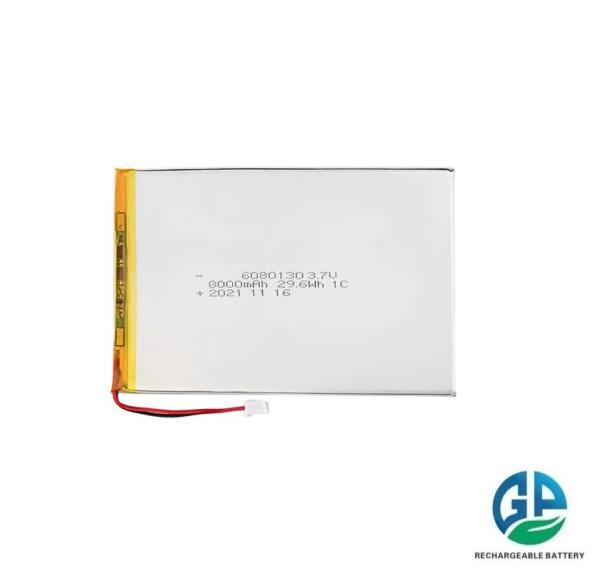

Images for Rechargeable lion Polymer battery 3.7V 6080130 8000mah li polymer battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
