32700 3.2v 6ah 7ah Lifepo4 Cylindrical Battery Cell 32650 For
Fishing Boat, Camping Car ,Solar Storage.
| | |
| CC Mode | |
| CV Mode | |
| Standard Charging | |
Fast Charging | |
| 0.5C | |
Operating Temperature Range | | 0~60 °C |
| -5~ 60°C |
Storage Temperature | 25±5°C |
Other hot sale lifepo4 rechargeable battery cell:
| Lifepo4 Cylindrical Battery cell List |
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharge Rate | Weight(g) | Cycle life (80% DOD) |
| IFR10440 | 3.2V | 200mAh | 10.3*44.2 | 0.2-0.5C | 0.2-3C | 7 | ≧2000 |
| IFR14430 | 3.2V | 400mAh | 14.2*43 | 0.2-0.5C | 0.2-3C | 13 | ≧2000 |
| IFR14500 | 3.2V | 600mAh | 14.2*50.2 | 0.2-0.5C | 0.2-3C | 18 | ≧2000 |
| IFR16340 | 3.2V | 400mAh | 16.2*34.2 | 0.2-0.5C | 0.2-3C | 13 | ≧2000 |
| IFR18500 | 3.2V | 1000mAh | 18.1*50.2 | 0.2-0.5C | 0.2-3C | 34 | ≧2000 |
| IFR18650 | 3.2V | 1500mAh | 18.5*65.3 | 0.2-0.5C | 0.2-3C | 42 | ≧2000 |
| IFR18650 | 3.2V | 1800mAh | 18.5*65.3 | 0.2-0.5C | 0.2-3C | 62 | ≧2000 |
| IFR22650 | 3.2V | 1800mAh | 22.5*65.3 | 0.2-0.5C | 0.2-3C | 64 | ≧2000 |
| IFR26650 | 3.2V | 3400mAh | 26.5*65.3 | 0.2-0.5C | 0.2-3C | 85 | ≧2000 |
| IFR26650 | 3.2V | 3600mAh | 26.5*65.3 | 0.2-0.5C | 0.2-3C | 90 | ≧2000 |
| IFR26650 | 3.2V | 4000mAh | 26.5*65.3 | 0.2-0.5C | 0.2-3C | 90 | ≧2000 |
| IFR32700 | 3.2V | 6000mAh | 32.5*65.3 | 0.2-0.5C | 0.2-3C | 150 | ≧2000
|
Lifepo4 32700 32650 cylindrical battery used for:
| Solar Storage Battery |
| Voltage | Typical Capacity | Charge | Discharge | Dimension(mm) | Weight(Kg) |
|
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 4.5 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |

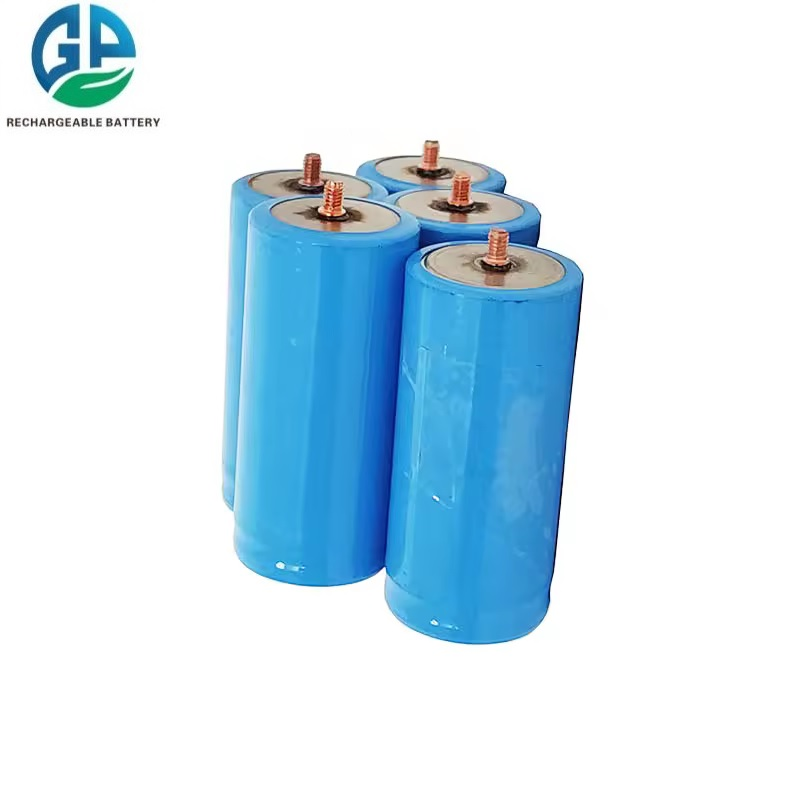

Detailed images for: Lifepo4 32700 cylindrical lithium rechargeable
battery cell For Fishing Boat, Camping Car ,Solar Storage.
FAQ for Lithium cylindrical lifepo4 battery cell
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new
batteries are used with old ones, the difference in characteristics
of voltage, capacity, etc. may cause over-discharge of the battery
which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are
packed together?
A: If the batteries with different capacity or new and old
batteries are used together, leakage, zero voltage and so on might
happen. If the batteries are rechargeable and are being charged,
some batteries are overcharged and other batteries is not in full
charged state. During the discharge, some batteries cannot
discharge fully and other batteries might over discharge. This way,
the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of
the battery pack?
A: Short circuit or open circuit of the connector or wrong
connection, de-soldering or cold solder joint between the batteries
and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or
rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero
voltage in the battery pack.
Q: Cautions and Warnings for Using Lithium Battery
1. Don’t immerse the battery in water.
2. Don’t use and leave the battery near a heat source such as fire
or heater.
3. When charging, use a battery charger specifically for that
purpose.
4. Don’t reverse the positive and negative terminals.
5. Don’t connect the battery to an electrical outlet directly.
6. Don’t discard the battery in fire or heater.
7. Don’t connect the positive and negative terminal directly with
metal objects.
8. Don’t transport and store the battery together with metal
objects such as necklaces, hairpins.
9. Don’t strike, throw or trample the battery.
10. Don’t pierce the battery with a nail or other sharp object.
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
