MSDS 703048 3.7v Lithium Polymer Battery 1000mah
| Items | Parameter |
| Battery model | 703048 3.7V 1000mAH lipo battery pack |
| Nominal voltage | 3.7V |
| Minimum capacity | 110mAh(0.2C discharge) |
| Charging voltage | 4.25V |
| Discharging cut-off voltage | 3.0V |
| Standard charging | 0.2C /4.25V |
| Max charging | 1.0C /4.25V |
| Standard discharging | 0.2C/3.0V |
| Max discharging | continuous discharge | 1.0C/3.0V |
| non-continuous discharge | 2.0C/3.0V |
| Shipment voltage | ≥3.80V |
| Operating temperature | Charging: 0°C ~ 45°C |
| Discharging: -20°C ~60°C |
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10℃~25℃ | (12 months ≥85% ) |
| -10℃ ~45℃ | (6 months ≥85% ) |
| -10℃~55℃ | (1 month ≥90% ) |
| 20±5℃ is the recommended storage temperature |
| Reference standard | GB/T 18287-2013,IEC62133, UL1642 |
Other hot-sale Li polymer battery pack models, with stocks can
accept mini order:
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
Li polymer battery pack widely used in:
GPS, POS Terminal, Wireless headset, Communication Tool, Heating
Blanket Smart Phone
Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor
Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera

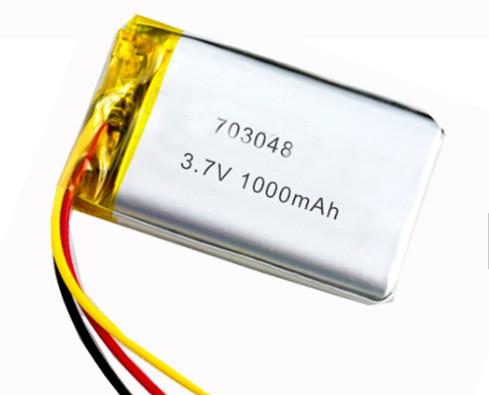

Detailed images:Li Polymer 703048 1000mah 3.7v lipo Rechargeable
battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
FAQ for lithium rechargeable battery:
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new
batteries are used with old ones, the difference in characteristics
of voltage, capacity, etc. may cause over-discharge of the battery
which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are
packed together?
A: If the batteries with different capacity or new and old
batteries are used together, leakage, zero voltage and so on might
happen. If the batteries are rechargeable and are being charged,
some batteries are overcharged and other batteries is not in full
charged state. During the discharge, some batteries cannot
discharge fully and other batteries might over discharge. This way,
the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of
the battery pack?
A: Short circuit or open circuit of the connector or wrong
connection, de-soldering or cold solder joint between the batteries
and lead, wrong connection between the batteries.
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
