Lithium Ion Lifepo4 Battery Bateria 24V 7Ah For UPS Alarm System Toy Car
Electrical Characteristics | | |
| | |
| | |
| | |
| | >3000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. |
| | |
|
Standard Charge
| | |
| | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A. |
| | |
| | |
|
Standard Discharge
| Discharge Current | 1.2A |
| Max. Continuous Current | 6A |
| Max.Pulse Current | 20A(<3S) |
| Disxcharge Cut-off Voltage | 16.0V |
|
Environmental
| Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Water Dust Resistance | None |
|
Mechanical
| Cell | LiFePO4 |
| Plastic Case | None |
| Dimension(L*W*H*) | Customized |
| Weight | Approx. 1.3Kg |
| | |
Other hot sale lifepo4 rechargeable battery pack:
| Lead Acid Replacement LiFePO4 Battery Pack |
| Voltage | Typical Capacity | Charge | Discharge | Dimension (mm) with case | Weight(Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |

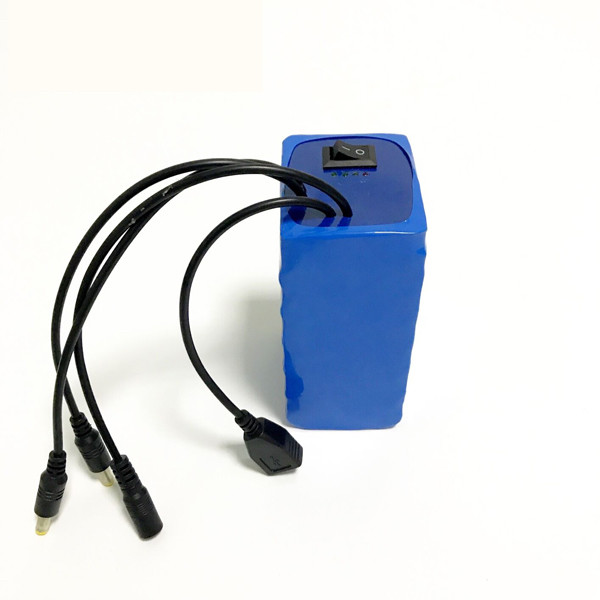

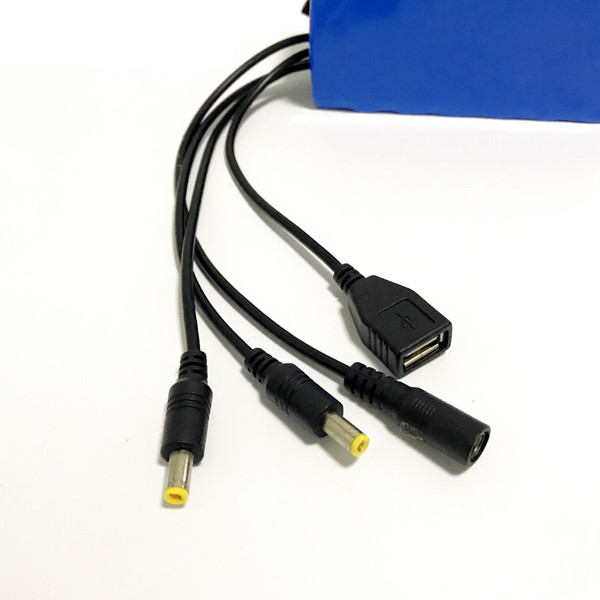

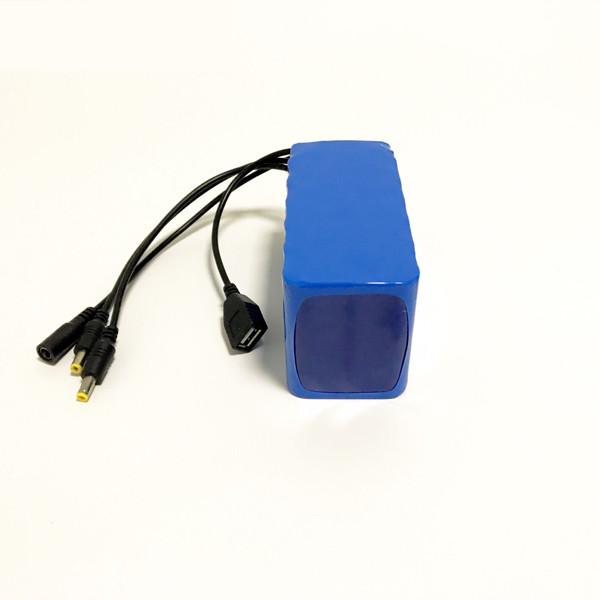

Detailed images: Lithium iron phosphate battery 24V 7Ah Lifepo4 rechargeable battery pack
FAQ:
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.
Lifepo4 rechargeable battery pack for other applications.
