AAA AAAA size lithium ion battery 10440 3.7V 320mAh for smart pen
handwriting
lithium ion battery 10440 3.7V 320mAh for smart pen handwriting |
Model: | 10440 | Max. Charge Current: | 320mA |
Capacity: | 320mAh | Standard Discharge Current: | 320mA |
Initial Impedance: | ≤200mΩ | Max. Discharge Current: | 640mA |
Energy: | 1.184Whh | Discharge Cut-off Voltage: | 3.0V |
Charge Voltage: | 4.2V | Weight: | About 8g |

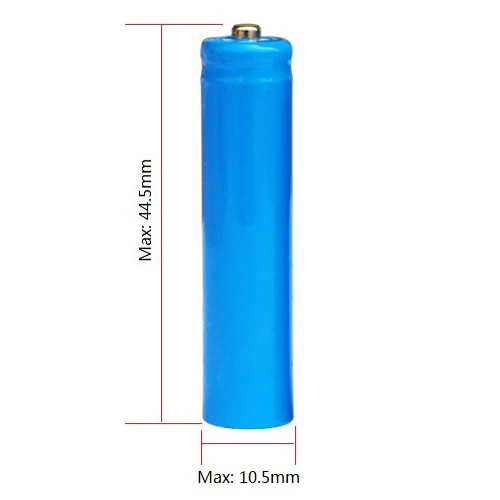

Charge Method: | CC-CV | Dimension: | 10.5mm*44.5mm |
Standard Charge Current: | 160mA | Cycle Life: | 300 |

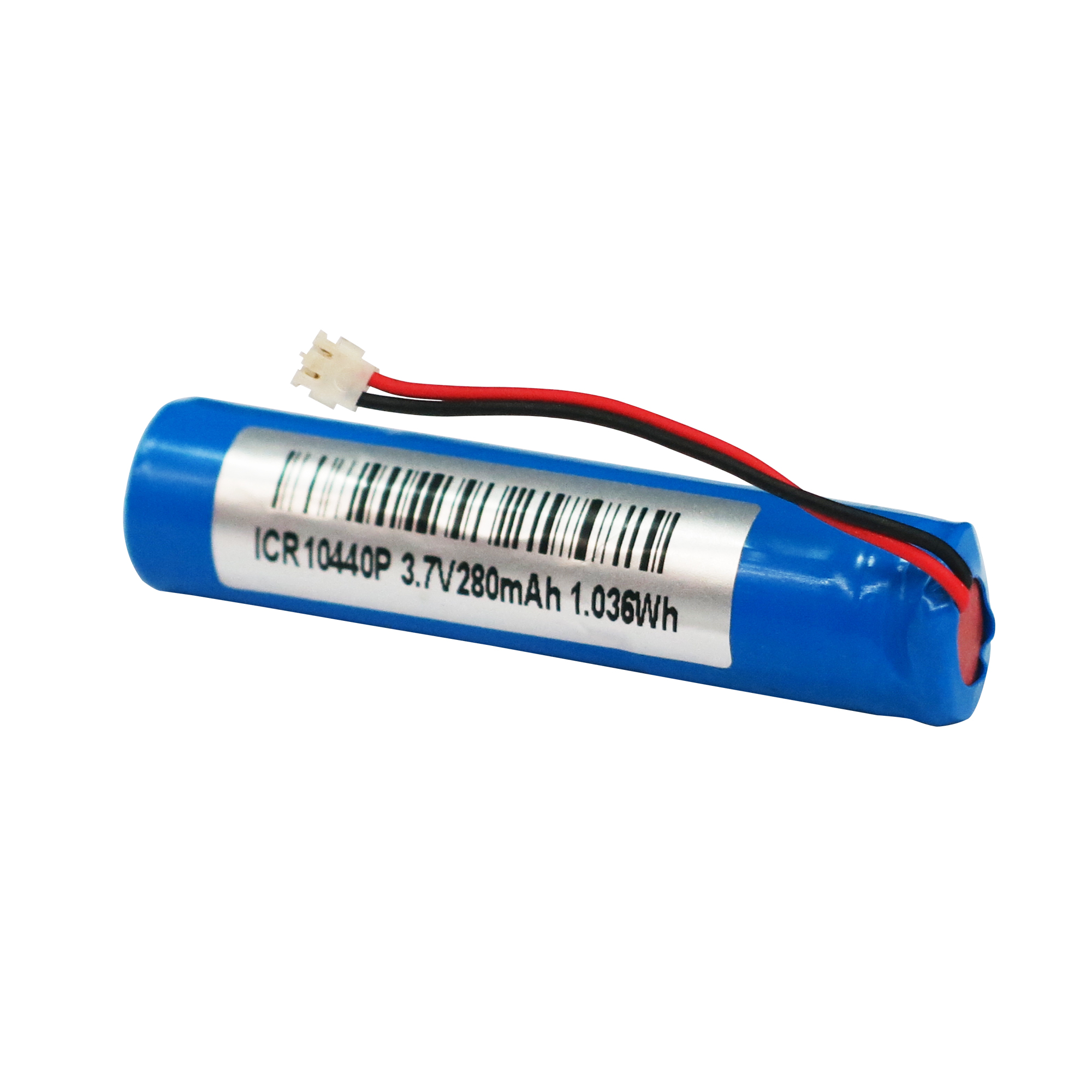

Detailed images for AAA size lithium ion battery cell ICR10440 3.7V
320mAh smart pen battery
Customized lithium rechargeable battery packs
Cautions and Warnings for Using Lithium Battery 1. Don’t immerse the battery in water. 2. Don’t use and leave the battery near a heat source such as fire
or heater. 3. When charging, use a battery charger specifically for that
purpose. 4. Don’t reverse the positive and negative terminals. 5. Don’t connect the battery to an electrical outlet directly. 6. Don’t discard the battery in fire or heater. 7. Don’t connect the positive and negative terminal directly with
metal objects. 8. Don’t transport and store the battery together with metal
objects such as necklaces, hairpins. 9. Don’t strike, throw or trample the battery. 10. Don’t pierce the battery with a nail or other sharp object.
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list |
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
