15C 18650 Lithium Battery Cells 3.7V Li Lon Battery 1500mAh For
Power Tool
ITEM | SPECIFICATION | REMARK |
Nominal Voltage | 3.7V | |
Nominal Capcity | 1500mAh | standard discharge at 0.2C |
Min Capacity
Standard Discharge Current
Max Discharge Current | 1450mAh
0.2C
15C | |
|
|
Peak Current | 20C(<3S) | last time ≦1s |
Charge Voltage
Standard Charge Current
Fast Charge Current
Max Charge Current | 4.20V±0.05V
0.2C(300mA)
0.5C(750mA)
1C(1.5A) | Charge time
Approx 7.0h
Charge time
Approx 3.0h |
|
|
|
Inner Resistance | ≦15mΩ | AC 1KHZ after 50% charge |
Cycle life
Discharge Cut off Voltage
End of charge current | ≧500times until 80% capacity
3.0V
0.02C(44mA) | CC/CV mode |
|
|
Charge Temperature Range
Discharge Temperature Range
Recommended Storage Temperature | 0℃ to 45℃
-20℃ to 60℃
23℃±5℃ |
Weight
Battery Cell Model
Configuration | Approx 45.7g
18650
single cell no PCM |
|
|
Size
Battery Warranty | H*D=65.5*18.3mm
12 months |
|
Main Application for 3.7V 7.4V, 11.1V 18650 lithium battery pack
High power products: power tools,scooters,electric bike,motorcycle battery
Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
Portable office devices: Notebook, PDA, portable electrograph, portable printer.
Video devices: GPS, digital camera, camcorder, portable DVD, portable television,
MP3, MP4.
Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
Illuminate devices: miner lamp, searchlight. Others: toys, models.
Warnings:
Do not place the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong
terminals connected.

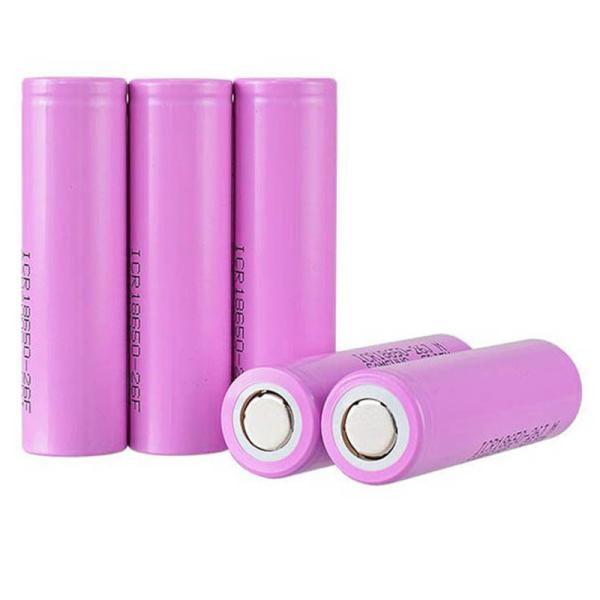

Detailed images: Rechargeable 15C 18650 Lithium battery cell 3.7V
1500mAh
Main Application for 3.7V 7.4V, 11.1V 18650 lithium battery pack
High power products: power tools,scooters,electric bike,motorcycle battery
Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
Portable office devices: Notebook, PDA, portable electrograph, portable printer.
Video devices: GPS, digital camera, camcorder, portable DVD, portable television,
MP3, MP4.
Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
Illuminate devices: miner lamp, searchlight. Others: toys, models.
Customized 3.7V, 7.4V, 11.1V, 14.8V lithium ion battery packs
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list |
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
