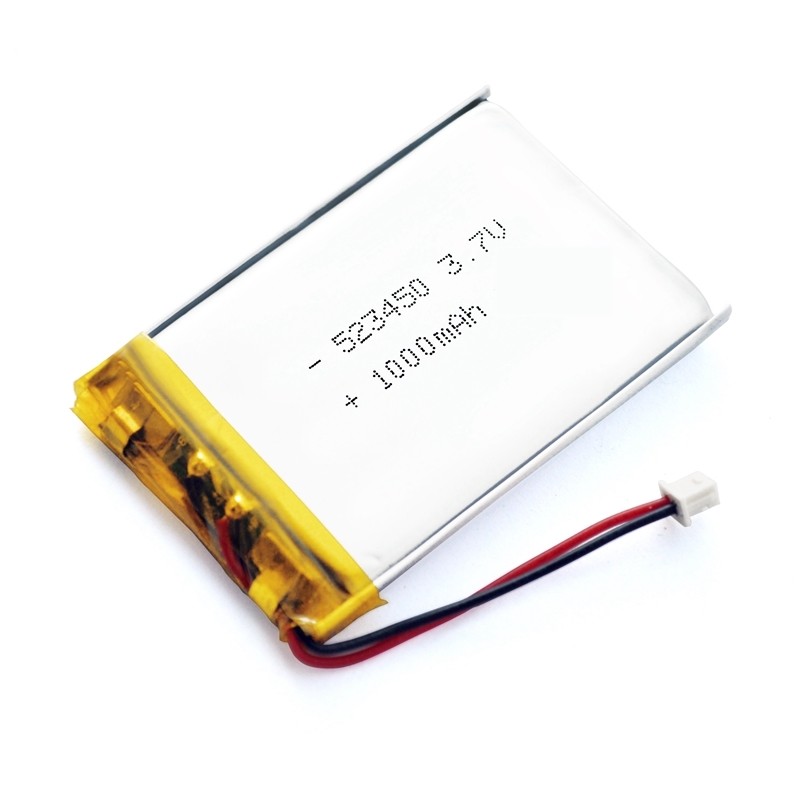

UN38.3 IEC62133 Li Polymer Battery 523450 1000mah 3.7V Lipo battery
for monitor device
| Battery Type | Lithium ion polymer battery |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1000 mah |
| Limited Charge Voltage | 4.2±0.2V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 3.0V |
| Max. Charge Current | 1000mA |
| Max. Continuous Discharge Current | 1000mAh |
| Cycle Life | 500-1000 cycles |
| Dimension | Thickness: 5.2mm |
| Width: 34mm |
| Length:52.5mm |
| Weight | 20g |
| Operation Temperature Range | Charge: 0~45℃; |
| Discharge: -20~60℃ |
| Recommended operating temperature: 15℃~35℃ |
| Self-Discharge Rate | Residual capacity: ≤5%/month; |
Li polymer battery pack widely used in:
GPS, POS Terminal, Wireless headset, Communication Tool, Heating
Blanket Smart Phone
Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor
Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera
Other hot-sale Li polymer battery pack models:
Shenzhen Gold Power Energy have over 1000models lithium polymer
batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds
of applications.
Following are some of hot-sale models for your reference.
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
Detailed images Li Polymer 502030 250mah 3.7v Rechargeable pack
Standard packaging for 3.7V lithium polymer battery pack
Warnings:
Do not place the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong
terminals connected.
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
