14.8V 10Ah Lithium Ion Battery Pack 18650 2500mah 4s4p For
Electronic Fishing Reel
| Voltage Range | 14.8V |
| Capacity | Nominal Capacity: 10Ah |
| Minimum Capacity: 10Ah |
| Charge Cut-off Voltage | 16.8V |
| Discharge Cut-off Voltage | 12V |
| Continuous Discharge Current | 5A(adjustable) |
| Discharge Peak Current | 20A |
| Charge Current | 2A |
| Cycle Life | ≥ 800 cycles, DOD 100% @ rated current and temp. |
| Weight | 800g ± 4g |
| Dimension | Customized |
| Operation Temp. | Discharge at -20°C ~ 60°C & Charge at 0°C ~ 45°C |
| Communication Protocol | Customized |

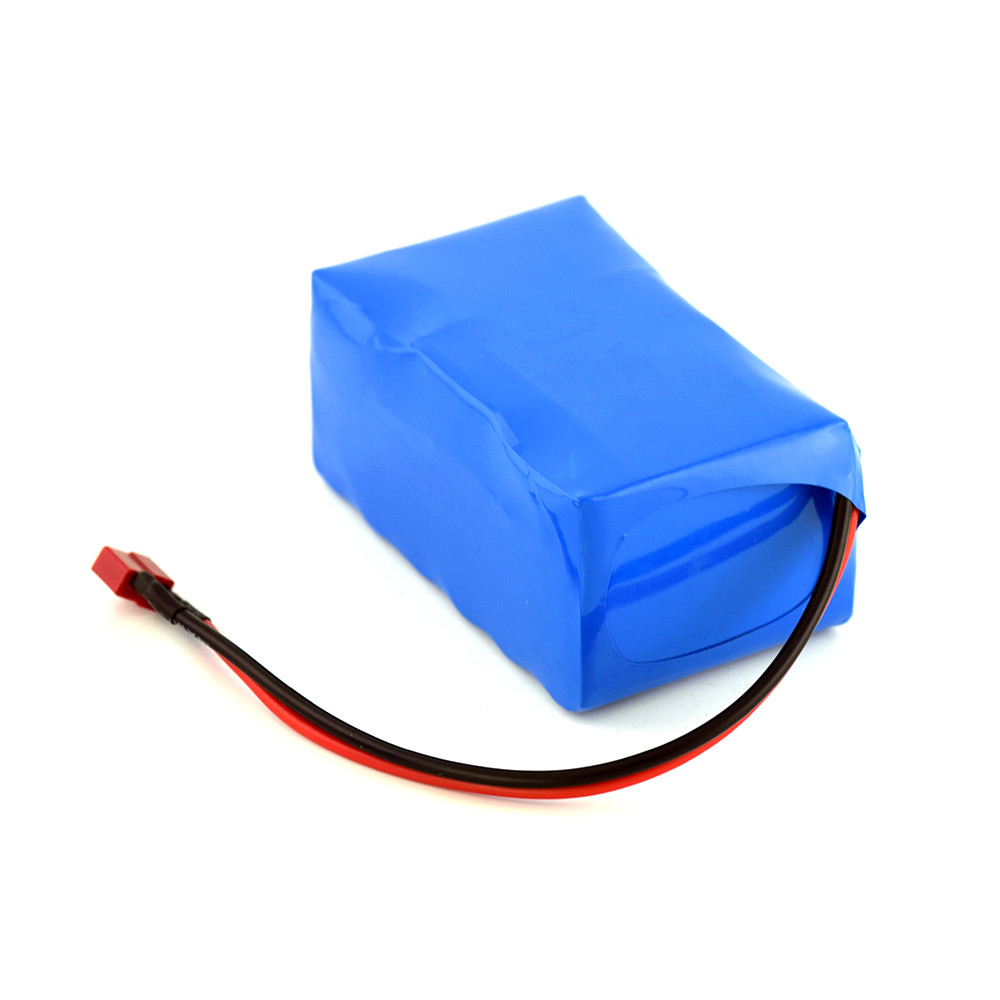

Detailed images: 18650 Lithium ion Battery pack 14.8V 10Ah Li Ion Rechargeable
Battery Pack
Applications for 14.8V Lithium ion battery pack
1.Light: headlamp, emergency light, sloar flashlight, searchlight,
lanten,bicycle light, LED light, military
flashlight, high-end flashlight, high power flashlight, bright
flashlight.
2.Outdoor sports products: camping light, mountain bike light, solor emergency light,
self-defense flashlight,
3.Customer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable
DVD player,
speaker, microphone, sound equipment, audio, Digital camera,
vidican.
4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys,
electric shoes,
electric blanket.
5.Medical devices
6.Instruments and meters: water meter, gas meter.
7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor, electric
trolley, electric cart.
8.Power tools: electric drill, mower
9.UPS, backup energy, storage energy.
Customized 18650 lithium battery packs 7.4V, 11.1V, 14.8V
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list |
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
