18650 3C Rechargeable Lithium Batteries 3.7V 2500mAh Li Ion Battery
Cell With PCM
| Item |
Parameters | Remark |
| Rated Capacity | Typical | 2500mAh | standard discharge(0.2C) after standard charge |
| Minimum | 2500mAh |
Alternating Internal Resistance | ≤60mΩ | |
| Nominal Voltage | 3.7V | mean operation voltage |
| Voltage at end of Discharge | 2.75V | discharge cut-off voltage |
| Charging at end of Voltage | 4.25V | |
| Standard Charge | Constant Current 0.2C Constant Voltage 4.2V 0.02C cut-off | charge time:Approx 6.0h |
| Standard Discharge | Constant Current 0.2C end Voltage 3.0V | |
| Fast Charge | Constant Current 1C Constant Voltage 4.2V 0.02C5A cut-off | charge time:Approx 2.5h |
| Fast Discharge | Constant Current 1C end Voltage 3.0V | |
Maximum Continuous Discharge Current | 3C | pulse discharge current: 5 C |
| Operation Temperature Range | Charge:0~55℃ Discharge:-20~60℃ | 60±25%R.H. bare battery |
| Storage Temperature Range | Less than 1 year:-20~25℃ Less than 3 months:-20~45℃ | 60±25%R.H. at the shipment |

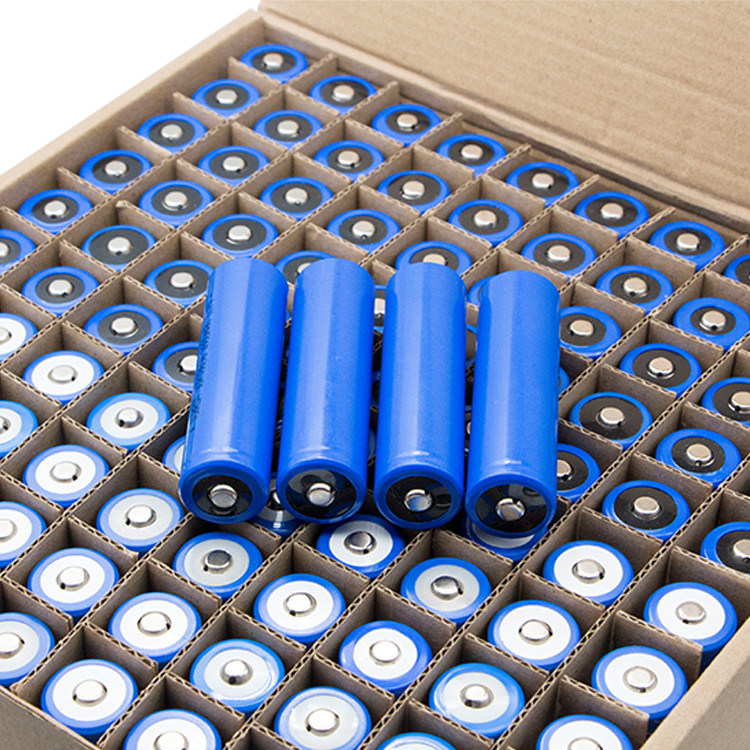

Detailed images: Rechargeable 18650 Lithium battery 3.7V 2600mAh
with PCM and hight top
Main Application for 3.7V 7.4V, 11.1V 18650 lithium battery pack
Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
Portable office devices: Notebook, PDA, portable electrograph, portable printer.
Video devices: GPS, digital camera, camcorder, portable DVD, portable television,
MP3, MP4.
Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
Illuminate devices: miner lamp, searchlight. Others: toys, models.
Customized 3.7V, 7.4V, 11.1V, 14.8V lithium ion battery packs
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list |
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
