3C Lithium Ion Battery Pack 18650 Lithium Battery 14.8V 2500MAH For
Emergency Systme
| Item | Rating | Note |
| Capacity | Typical | 2500mAh | |
| Minimum | 2500mAh |
| Nominal Voltage | Average 14.8V | |
| AC Impedance Resistance | ≤200mΩ | |
| Discharge Cut-off Voltage | 12.0V | |
| Charge Current | 10A | Standard Charge |
| Charge Voltage | 16.8V | |
| Max. Charge Voltage | 12.85V | |
| Charge Time | Approx 3.0h | Charge: 0.5CmA |
| Max. Charge Current | 4000mAh | |
| Max. Discharge Current | 4000mAh | |
| Weight | Approx 200.0g | |
| Operating Temperature | Charge | 0~+45°C | |
| Discharge | -20~+60°C | |
| Storage Temperature | less than 1 month | -5~+35°C | Recommended storage temperature: 20°C,at the shipment state |
| less than 3 months | -5~+35°C |

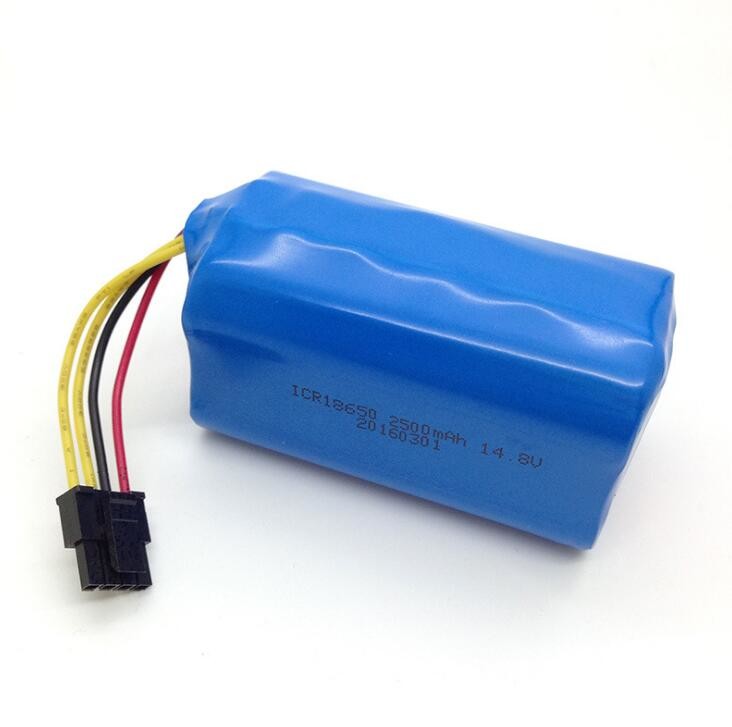

Detailed images for Rechargeable lithium battery pack 14.8V 2500mAh 18650 battery 4S1P
FAQ:
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new
batteries are used with old ones, the difference in characteristics
of voltage, capacity, etc. may cause over-discharge of the battery
which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are
packed together?
A: If the batteries with different capacity or new and old
batteries are used together, leakage, zero voltage and so on might
happen. If the batteries are rechargeable and are being charged,
some batteries are overcharged and other batteries is not in full
charged state. During the discharge, some batteries cannot
discharge fully and other batteries might over discharge. This way,
the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of
the battery pack?
A: Short circuit or open circuit of the connector or wrong
connection, de-soldering or cold solder joint between the batteries
and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or
rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero
voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the
battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as
extremely low or high temperature.
Customized lithium rechargeable battery packs
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
