High Capcity 24V 150AH rechargeable Lifepo4 Battery pack For
Forklift
- Nominal Voltage:25.6v
- Nominal Capacity: 150AH
- Discharge Cut-Off: 20V
- Charge Cut-Off: 29.2V
- Charge Current: 150A
- Cont. Discharge: 150A Peak
- Discharge: 200A
- Impedance: ≤20mΩ
- Charge Temperature: 0℃ - 45℃
- Discharge Temperature: -20℃ - 60℃
- Charge Method: CC/CV Life Cycle: 2000+
- Weight:38.3KG
- size:750*210*250mm

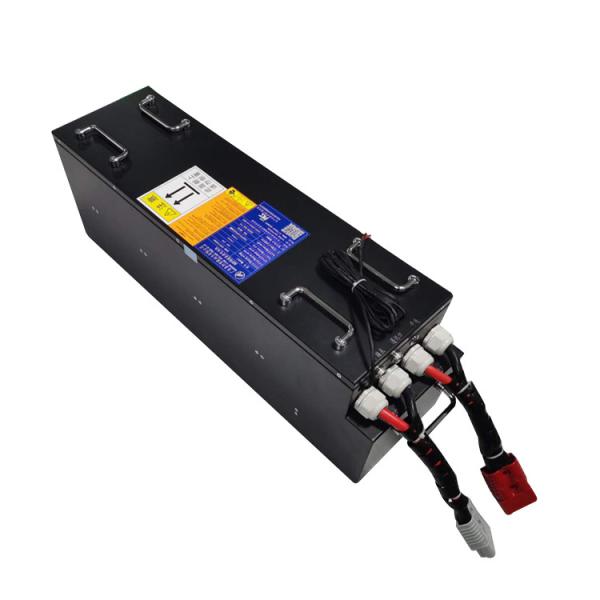

Pictures for: 24V 150AH Rechargeable Lifepo4 Battery Pack For
Forklift
Universal Chargers with different plugs for mathcing 24V 48V 72V
forklift rechargeable battery packs
Advantages of the Lifepo4 forklift battery:
Weight and Cycling
LifePO4 batteries are between 1/3-1/4 the weight of traditional
lead acid batteries. They also cycle up to more than 2000 times at
100% and 1C rate. However, its life cycles will be more if less
100% DOD and less 1C.
Efficiency and Full Cycle Capacity
Lead acid batteries’ internal resistance requires them to be
charged slowly and in stages to keep internal temperatures lower.
While, lifepo4 batteries can be charged at a constant current and
constant voltage, which allows them to be recharged quickly and put
back into service when they’re needed.
Very Little Wasted Energy
This can be especially important when charging via solar panels.
More forklift batteries rechargaebla lifepo4 battery pack for
choosing:
| Forklift Battery /Floor Machine battery |
| Model | Communication | Charge | Discharge | Dimension |
| 24V200AH | RS485, CANBUS | 1C | 1.5C | 350X540X160 mm |
| 48V150AH | CANBUS, BMS active equalization | 1.5C | 1.5C | 515*400*290mm |
| 80V400AH | RS485,add load weight | 0.5C | 1C | 1093*585*760mm |
| 220V80AH | RS485 & CANBUS | 1C | 0.5C | 700*650*400mm |
Other hot sale products except lifepo4 forklift battery:
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
