UN38.3 Solar Energy Storage Batteries 12 Volt Lithium Iron Phosphate Battery

Product Categories

shenzhen gold power energy co.,ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

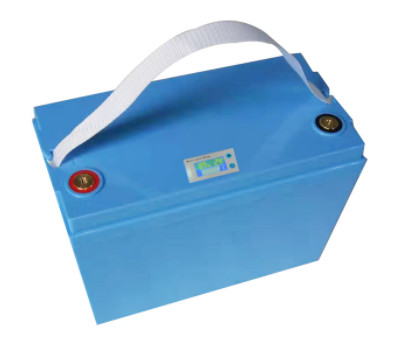

12V 100Ah Solar Energy Storage Batteries 12 volt lithium iron Phosphate battery

12v 100Ah solar energy storage battery pack
Electric Characteristics
Nominal Voltage:	12.8V	Energy:	1280Wh
Rated Capacity:	100Ah	Specifi Energy:	102.4Wh/kg
Internal Resistance:	≤50mΩ	Cycle Life:	2000+
Charging and Discharging Parameters
Charge cut-off volt:	14.6V	Discharge cut-off volt:	10V
Maximum Charge current:	100A	Maximum Discharge current:	100A
Peak Discharge current:	200A	Suggested charge Volt:	14.6V
Operation Temperature Parameters		Storage Temperature Parameters
Charge:	0~45℃	Less than a year:	0~25℃
Discharge:	-20~60℃	Less than three months:	-10~35℃
Recommended:	18~28℃
Mechanical Properties
Dimension Length:	330mm(12.99 inch)	Housing materials:	ABS
Dimension Width:	175mm(6.89 inch)	Terminal size:	M8
Dimension Heigth:	220mm(8.66 inch)	Cell model:	3.2v 100ah
Weight:	13kg(33.1 lbs)	Configuration:	4S1P
BMS function:
Protect battery from Overcharge, Overdischarge, Overcurrent, Short circuit
Advantage:
High safety(no fire,no explosion)	Light weight	High energy density	Long lifespan
Environmentally friendly	Waterproof	No memory effect	Easy maintenance

Details images for Lifepo4 battery pack 12 Volt 150Ah Storage battery for solar systme

UN38.3 Solar Energy Storage Batteries 12 Volt Lithium Iron Phosphate Battery

Other hot sale solar energy storage batteries:

Solar Storage Battery
Voltage	Typical Capacity	Charge	Discharge	Dimension(mm)	Weight(Kg)
Voltage	Typical Capacity	Charge	Discharge	Dimension(mm)	Weight(Kg)
12V	10AH	0.2C-2C	0.2C-2C	1509265	1.6
12V	50AH	0.2C-2C	0.2C-2C	195165175	9.5
12V	100AH	0.2C-2C	0.2C-2C	330175220	19
12V	200AH	0.2C-2C	0.2C-2C	525240215	30
24V	10AH	0.2C-2C	0.2C-2C	18177175	4.5
24V	50AH	0.2C-2C	0.2C-2C	330175220	18
48V	50AH	0.2C-2C	0.2C-2C	522237215	33
48V	75AH	0.2C-2C	0.2C-2C	522237215	42
48V	100AH	0.2C-2C	0.2C-2C	350540160	52

Other hot sale lifepo4 rechargeable battery packs:

Why Choose us:

Technology

All-weather applicability (-30~60℃)
Highly safe battery design technology with the newest electrolyte and separator technology applie
Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Quality Control

Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.
