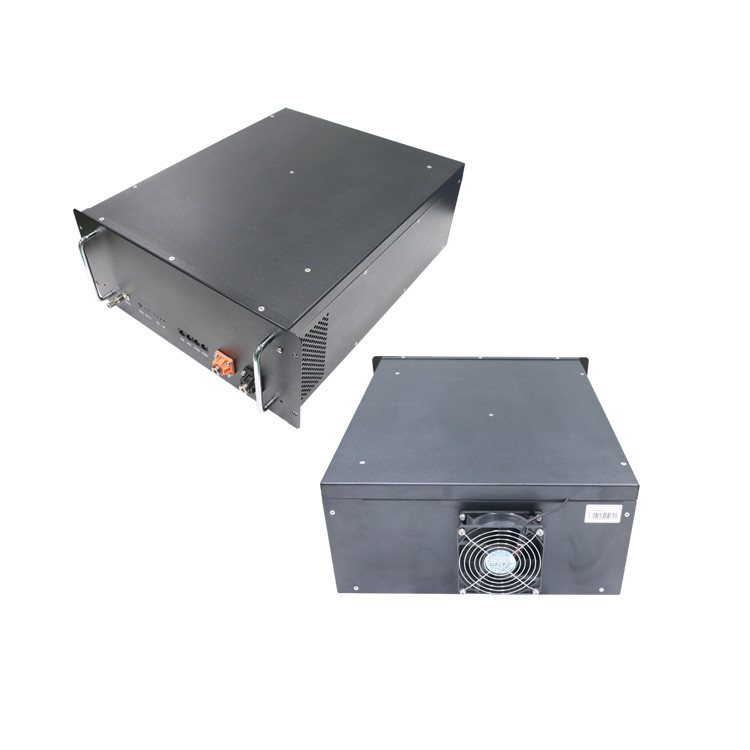

48V Solar Energy Storage Batteries 5KWh Household Solar Battery Storage
| Item | Houshold Solar stroage Battery Pack Description |
| Product Name | 2.4kWh Pack | 2.8kWh Pack | 4.8kWh Pack | 5.6kWh Pack |
| Ah Capacity | 48V 50Ah | 51.2V 55Ah | 48V 100Ah | 51.2V 110Ah |
| Energy Capacity | 2.4kWh | 2.8kWh | 4.8kWh | 5.6kWh |
| Cell Type | 3.2V LiFePO4 prismatic cells |
| Cell Number | 15 cells | 16 cells | 30 cells | 32 cells |
| Cell Capacity | 50Ah | 55Ah | 50Ah | 55Ah |
| Cell Connection | 15S | 16S | 2P15S | 2P16S |
| Typical Voltage | 48VDC | 51.2VDC | 48VDC | 51.2VDC |
| Working Voltage Range | 42V-54V | 44.8V-57.6V | 42V-54V | 44.8V-57.6V |
| Dynamic voltage difference between cells | ≤50mv |
| Maximum Discharging Current | 1C |
| Maximum Charging Current | 0.5C |
| BMS Integrated | Yes |
| BMS Communication | RS485 |
| BMS Active Equalization | Yes |
| SOC Range | 5% - 95% |
| Usable Capacity | 2.16kWh | 2.52kWh | 4.32kWh | 5.04kWh |
| Lifespan | 5000 cycles |
| Warranty | 9MWh per kWh BTT or 10 years, depends on which one comes sooner |
| Working Temperature Range | 0℃ - 45℃ |
| Storage Temperature Range | -20℃ - 45℃ |
| Power Connection | IP67 push and plug connector |
| Self-consumption
25℃ 40%SOC | 5% per month |
| Dimensions | 2U 483x89x428mm | 3.5U 483x160x428mm |
| Weight | 24KG | 25KG | 46KG | 47KG |
FAQ for Lifepo4 48V 100Ah lithium iron phosphate battery for solar storage system:
Q1. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A1: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:
1. Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2. Don't put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3. Advise us the capacity of the whole pack if you plan to put them in series. We will choose the suitable BMS for each battery. 4. If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.
Q2. Does your battery pack include BMS? Can we use it for car?
A2: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
Solar street Light Battery 100Ah rechargeable 48v Lifepo4 battery pack
Related battery charger for 48 volt lifepo4 portable solar battery pack
Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:
| Lead Acid Replacement LiFePO4 Battery Pack |
| Voltage | Typical Capacity | Charge | Discharge | Dimension (mm) with case | Weight(Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
Lifepo4 rechargeable battery packs for other applications.
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
