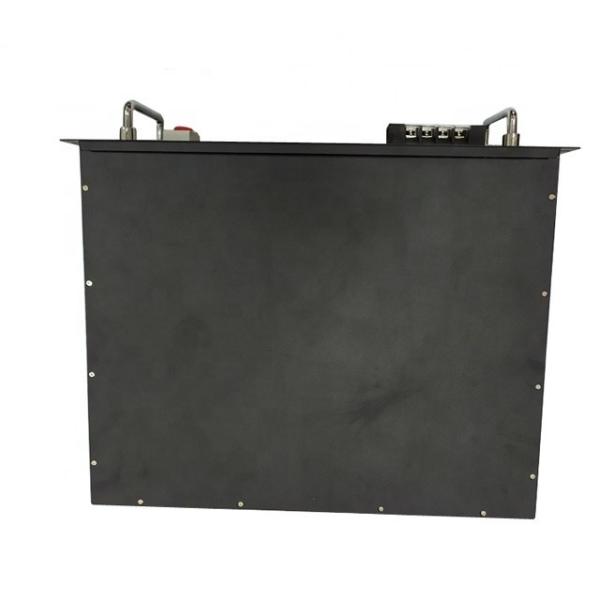

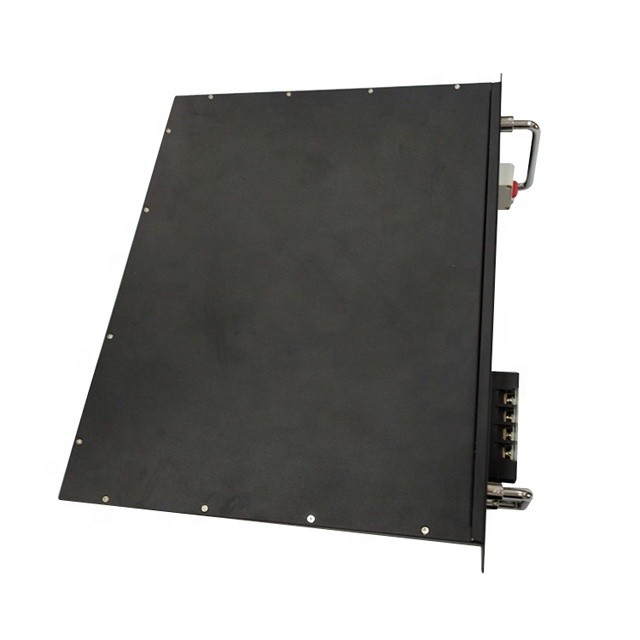

Rechargeable Battery Pack 48V 100AH Custom Lithium Ion Battery Pack For Solar Power Storage
5kw solar system 48v LiFePO4 long life use 100ah lithium ionen akku battery |
| | | |
| | Nominal Voltage: | 48V | Any voltage can be customized |
| Nominal Capacity: | 100Ah | Any capacity can be customized |
| Discharge Cut-Off: | 40V | |
| Charge Cut-Off: | 58.4V | |
| Charge Current: | 100A | Free customization service |
| Cont. Discharge: | 200A | Free customization service |
| Peak Discharge: | 400A | Free customization service |
| Impedance: | ≤20mΩ | |
| Charge Temperature: | 0℃ - 45℃ | |
| Discharge Temperature: | -20℃ - 60℃ | |
| Charge Method: | CC/CV | |
| Life Cycle: | 2000+ | 80% DOD, Max. 95% DOD |
| BMS: | With BMS | |
| Dimension: | L*W*H: 522*239*217mm | Any dimension can be customized |
| Weight: | 50KG | |
| | Prismatic LiFePO4 Cell | 3.2V 100Ah/50Ah/25Ah | 16S1P/ 16S2P/ 16S4P |
| | | Single cell overcharge protection voltage | 3.9±0.05V |
| Single overcharge release voltage | 3.6±0.05V |
| Charge Protection | Rated charging current | ≤200A |
Over discharge protection | Single cell over-discharge protection voltage | 2.20±0.1V |
| Single-substrate release voltage | 2.7±0.1V |
| Rated discharge current | ≤200A |
| Discharge protection current | 500±100A (10mS) |
| Short circuit protection | Short circuit protection | 200-600 µs |
| Communication Function | Support | Confirm with supplier |
| Balance | Active cell balancing | Confirm with supplier |
| | Display content | Voltage/ Capacity%/ Working Temperature | |
| | ABS plastic case | With handle | |
| IP Grade | IP65 | |
Solar backup power system Battery 100Ah rechargeable 48 volt Lifepo4 battery pack
Related battery charger for 12 volt lifepo4 portable solar battery pack
Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:
| Lead Acid Replacement LiFePO4 Battery Pack |
| Voltage | Typical Capacity | Charge | Discharge | Dimension (mm) with case | Weight(Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
Lifepo4 rechargeable battery packs for other applications.
