High Discharge 10S4P ICR18650 36v 10ah Lithium Ion Battery Pack
Material | Lithium Ion Battery (LiNiCoMnO2) |
Nominal Voltage | 36V |
Nominal Capacity | 10Ah (or cusmized 12Ah/ 15Ah/ 20Ah/ 26Ah/ 30Ah/ 40Ah/ 50Ah/ 60Ah/
80Ah) |
Cell Assembly | 18650 cell(or Samsun cell/ LG cell/ Panasonic cell/ Sanyo cell) |
Capacity can be customized |
Built-in BMS
(13S 30A BMS) | Over-charge & discharge protection.
Temperature control function.
Short circuit protection.
Balance the cells and ensures long cell life. |
Charge | Charge Model | CC / CV |
Charge Current | 2A / 5A Charger |
BMS Charge Cut-off Voltage | 42V |
Cell Overcharge Protection Voltage | 4.2V / Cell |
Discharge | Max Continuous Discharge Current | 30A |
Peak Discharge Current | 60A |
BMS Discharge Cut-off Voltage | 27.5 +/-1V |
Cell Over-discharge Protection Voltage | 2.75V / Cell |
Working Temperature | Charge Temperature Range | 0~45°C |
Discharge Temperature Range | -20~60°C |
Cycle Life | 500~800 cycles |
Our certifications | UN38.3, IEC62133, ROHS, MSDS |
Dimension | Customized as |
Weight | about 2.2 Kg |
Application | E Bike, Scooter, Motorcycle, AGV, Golf craft, EV, Inverter, Robot |
Warranty | 12 Months |
Part Included | |

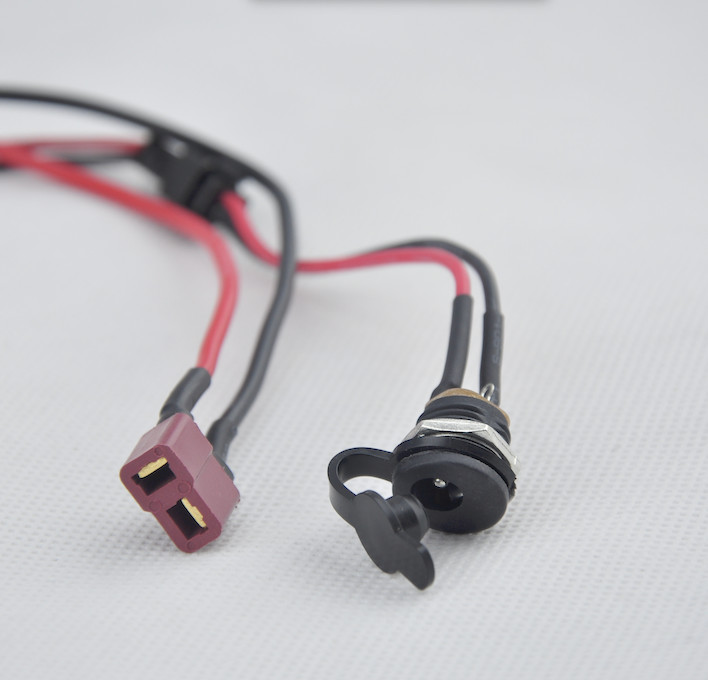

Detailed images: 18650 Lithium ion Battery pack 36V 10Ah Li Ion Rechargeable
Battery Pack
Customized 18650 lithium battery packs 7.4V, 11.1V, 14.8V
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list |
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
