Small size mini Lithium Polymer Battery 3.7V Lipo Battery 501012
45mAh
1 | Nominal Capacity | 45mAh |
2 | Nominal Voltage | 3.7V |
3 | Initial Impedance | (23±2°C) |
4 | Limited Charge Voltage | 4.20V |
5 | Discharge Cut-off Voltage | 3.0V |
6 | Charge Current | Standard Charge: 0.2C |
Rapid Charge: 1C |
7 | Standard Charge | 0.2C(constant current) charge to 4.2V, then CV(constant voltage)
charge till charge current decline to 0.02C. |
8 | Standard Discharge | 0.2 C discharge to the Discharge Cut-off Voltage. |
9 | End-of-Charge Current | 0.02C |
10 | Max Continuous Charge Current | 1C |
11 | Max Continuous Discharge Current | 1C |
12 | Working Temperature Range | Charge : 0 ~ 45°C |
Discharge : – 20 ~ 60°C |
13 | Storage Temperature Range | -20 ~ 60°C≤1month
-20 ~ 45°C≤3months
-20 ~ 30°C≤12months |
14 | Operating and Storage Humidity Range | 45~75% RH |
15 | Weight (Approx) | 3.1g |
Other hot-sale Li polymer battery pack , with stocks can accept
mini order:
Shenzhen Gold Power Energy have over 1000models lithium polymer
batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds
of applications.
Following are some of hot-sale models for your reference.
| Model | Cell Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |

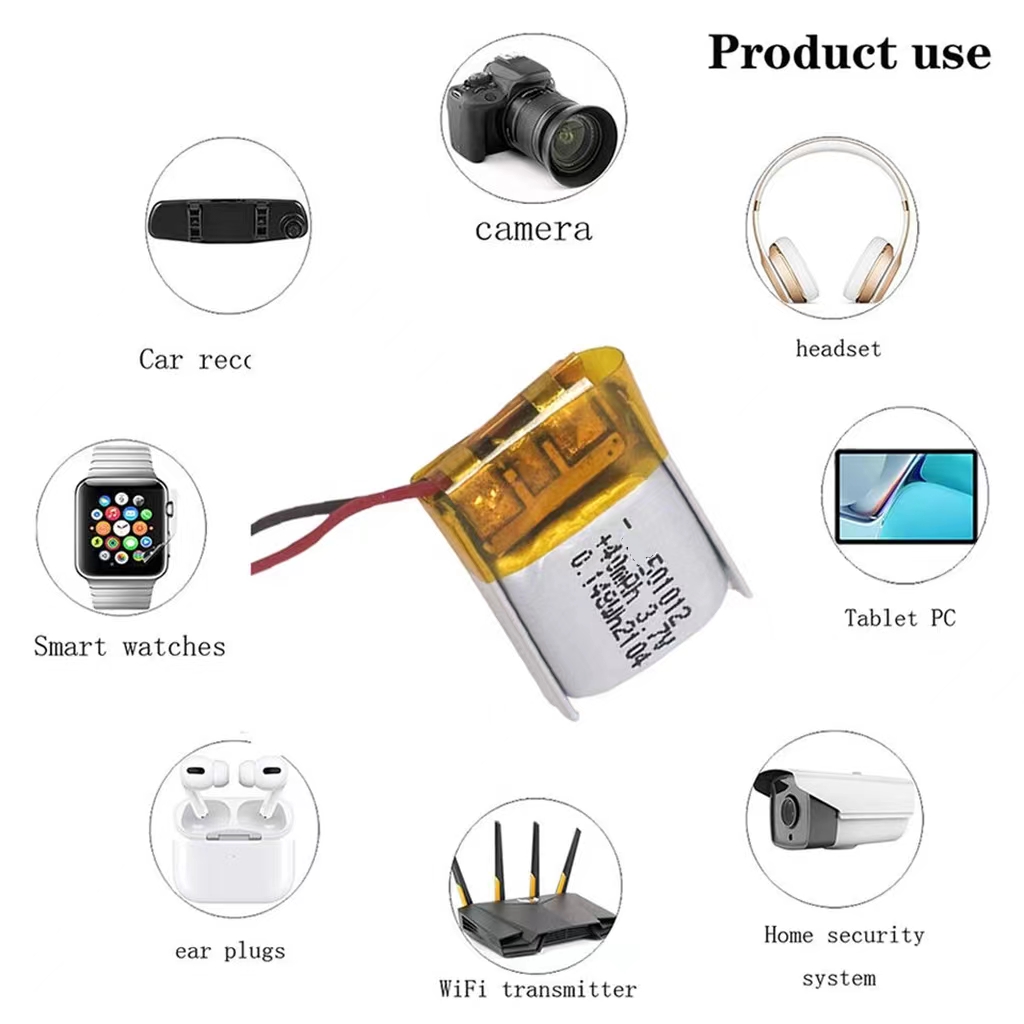

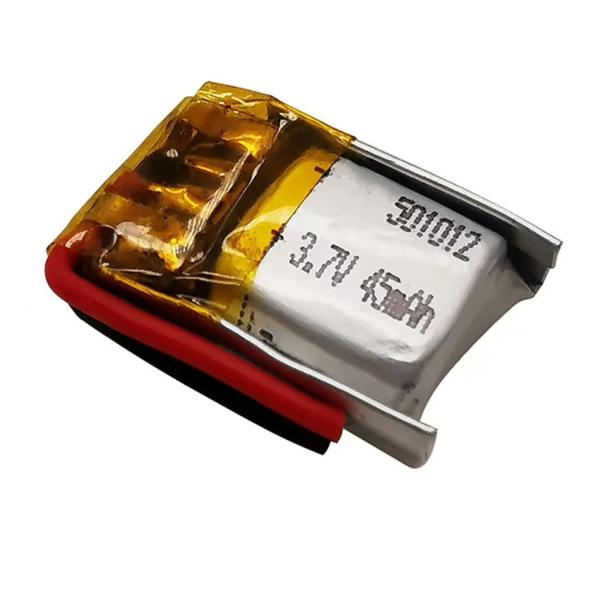

Images for Ultra small Li-Polymer 3.7V 501012 45mah lithium ion
polymer battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
FAQ:
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new
batteries are used with old ones, the difference in characteristics
of voltage, capacity, etc. may cause over-discharge of the battery
which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are
packed together?
A: If the batteries with different capacity or new and old
batteries are used together, leakage, zero voltage and so on might
happen. If the batteries are rechargeable and are being charged,
some batteries are overcharged and other batteries is not in full
charged state. During the discharge, some batteries cannot
discharge fully and other batteries might over discharge. This way,
the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of
the battery pack?
A: Short circuit or open circuit of the connector or wrong
connection, de-soldering or cold solder joint between the batteries
and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or
rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero
voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the
battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as
extremely low or high temperature.
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
