High Cycle Life:>6000 times @ 80%DOD for effectively lower cost
of ownership
Built-in BMS Protection:Battery Management System are incorporated
to protect battery from
LIGHT WEIGHT: Dry power lithium batteries has higher energy
density,wh/kg also being up to 1/3 of SLA battery WIDE OPERATING
TEMPERATURE RANGE:Suitable for users in a wider range of
application where ambient
temperature is unusually high: up to +60°C
Application
Lithium Iron Phosphate can be used in any application that would
normally use Lead Acid, GEL, or AGM type batteries.
LiFePO4 in 4S=12.8V and 8S=25.6V is closed to Lead Acid equivalents
of the Lithium rechargeable types
Suitable applications included caravan, marine, golf carts, solar
storage,remote monitoring, switching applications
LFP prismatic cell 3.2V 280Ah features
| Battery Type | LiFePO4 prismatic cell/LFP battery cell |
| Battery Model | LF72174205 |
| Volt& Capacity | 3.2V 280Ah |
| Battery size | 72*174*205mm |
| Impedance | ≤0.25mΩ |
| Grade | A |
| Application | Electric Vehicle, Communications, Telecom Tower Energy storage,
Intelligent network ,ESS |
Other hot sale lithium Iron Phosphate cylindrical rechargeable
battery cell.
| Model No. | Standard Voltage | Standard Capacity(Ah) | Impendence (mΩ) | Weight(Kg) | Height(mm) | Width(mm) | Thickness(mm) |
| LFP50 | 3.2V | 50Ah | ≤0.7mΩ | 1.4Kg | 185.3±0.5 | 135.3±0.5 | 29.3±0.5 |
| LFP80 | 3.2V | 80Ah | ≤0.5mΩ | 1.68Kg | 170±0.5 | 130.3±0.5 | 36.7±0.5 |
| LFP90 | 3.2V | 90Ah | ≤0.5mΩ | 2.0Kg | 200.5±0.5 | 130.3±0.5 | 36.7±0.5 |
| LFP100 | 3.2V | 100Ah | ≤0.5mΩ | 1.92Kg | 118±0.5 | 160±0.5 | 49.9±0.5 |
| LFP105 | 3.2V | 105Ah | ≤0.5mΩ | 1.98Kg | 200.5±0.5 | 130±0.5 | 36.7±0.5 |
| LFP173 | 3.2V | 173Ah | ≤0.5mΩ | 3.25Kg | 207.2±0.5 | 173.9±0.5 | 41.0±0.5 |
| LFP230 | 3.2V | 230Ah | ≤0.25mΩ | 4.11Kg | 207.0±0.5 | 173.9±0.5 | 54.0±0.5 |
| LFP280 | 3.2V | 280Ah | ≤0.25mΩ | 5.42Kg | 207.5±0.5 | 173.7±0.5 | 72.0±0.5 |
| LFP304 | 3.2V | 304Ah | ≤0.5mΩ | 5.49Kg | 208.8±0.5 | 173.5±0.5 | 72.0±0.5
|

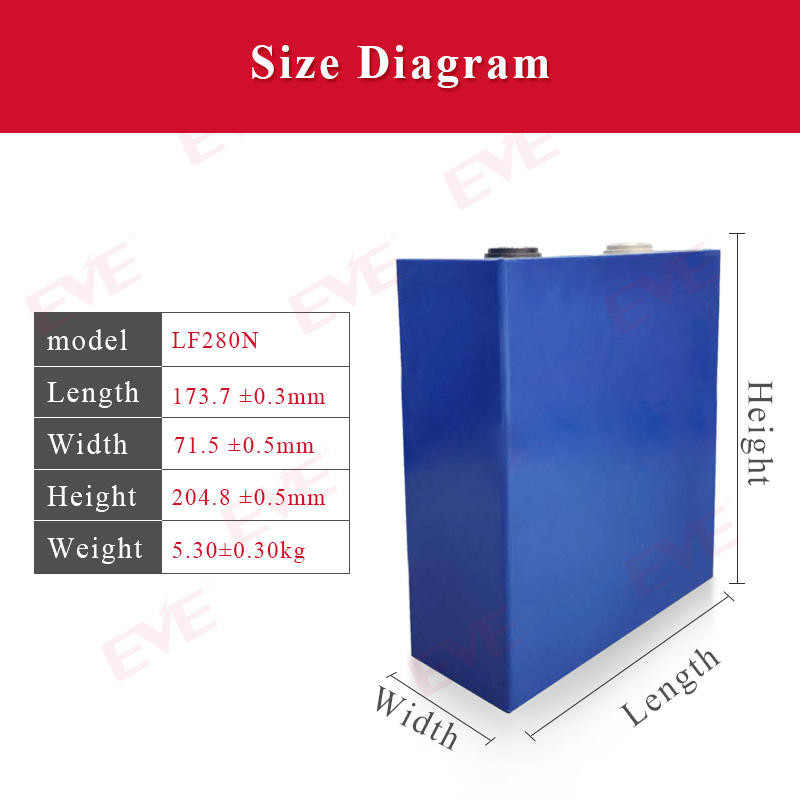

Images for: LiFePO4 280AH Prismatic LiFePO4 Battery Cell
FAQ for Rechargeable Prismatic LiFePO4 Battery cell
Q: Can I use Lithium Iron batteries mixing with other battery
types?
A: If different types of batteries are used together, or new
batteries are used with old ones, the difference in characteristics
of voltage, capacity, etc. may cause over-discharge of the battery
which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are
packed together?
A: If the batteries with different capacity or new and old
batteries are used together, leakage, zero voltage and so on might
happen. If the batteries are rechargeable and are being charged,
some batteries are overcharged and other batteries is not in full
charged state. During the discharge, some batteries cannot
discharge fully and other batteries might over discharge. This way,
the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of
the battery pack?
A: Short circuit or open circuit of the connector or wrong
connection, de-soldering or cold solder joint between the batteries
and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or
rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero
voltage in the battery pack.
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
