6000 Cycles Golf Cart Lifepo4 Battery Cell , 105Ah 3.2V LFP Prismatic Cell

Ask Lasest Price
Model Number :	LFP80Ah
Certification :	UN38.3, MSDS, IEC62133, UL
Payment Terms :	T/T
Supply Ability :	10'000Pieces daily
Delivery Time :	within 10days

Add to Cart

Product Details
Company Profile

6000 Cycles Golf Cart Lifepo4 Battery Cell , 105Ah 3.2V LFP Prismatic Cell

LFP prismatic cell Lithium Iron Phosphate battery features

1. Lighter in weight, heavier on power than lead acid battery.
2. Use a grade cells. More than 6000 cycle times.
3. Max discharge continuous current, 1C TO 3C 5C.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. batteries have passed different safety tests.

6. Optional: Lithium Battery built with BMS

Lifepo4 prismatic cell 3.2V 80Ah LFP Pouch cell Specifications

3.2V 80ah lifepo4 Pouch cell
battery type	lifepo4 lithium ion battery
Nominal voltage	3.2V
Nominal Capacity	80AH
Max Charge current	≤1C
Size	36130170mm
Max discharge current	≤1C
weight	1.68Kg
Charge working Temperature	0～45°C
Discharge working Temperature	-20~55 °C
Storage temperature	-20～60°C

Other hot sale lithium Iron Phosphate cylindrical rechargeable battery cell.

Model No.	Standard Voltage	Standard Capacity(Ah)	Impendence (mΩ)	Weight(Kg)	Height(mm)	Width(mm)	Thickness(mm)
LFP50	3.2V	50Ah	≤0.7mΩ	1.4Kg	185.3±0.5	135.3±0.5	29.3±0.5
LFP80	3.2V	80Ah	≤0.5mΩ	1.68Kg	170±0.5	130.3±0.5	36.7±0.5
LFP90	3.2V	90Ah	≤0.5mΩ	2.0Kg	200.5±0.5	130.3±0.5	36.7±0.5
LFP100	3.2V	100Ah	≤0.5mΩ	1.92Kg	118±0.5	160±0.5	49.9±0.5
LFP105	3.2V	105Ah	≤0.5mΩ	1.98Kg	200.5±0.5	130±0.5	36.7±0.5
LFP173	3.2V	173Ah	≤0.5mΩ	3.25Kg	207.2±0.5	173.9±0.5	41.0±0.5
LFP230	3.2V	230Ah	≤0.25mΩ	4.11Kg	207.0±0.5	173.9±0.5	54.0±0.5
LFP280	3.2V	280Ah	≤0.25mΩ	5.42Kg	207.5±0.5	173.7±0.5	72.0±0.5
LFP304	3.2V	304Ah	≤0.5mΩ	5.49Kg	208.8±0.5	173.5±0.5	72.0±0.5

Images for: LFP prismatic cell 3.2V 80AH LiFePO4 Battery Cell

6000 Cycles Golf Cart Lifepo4 Battery Cell , 105Ah 3.2V LFP Prismatic Cell

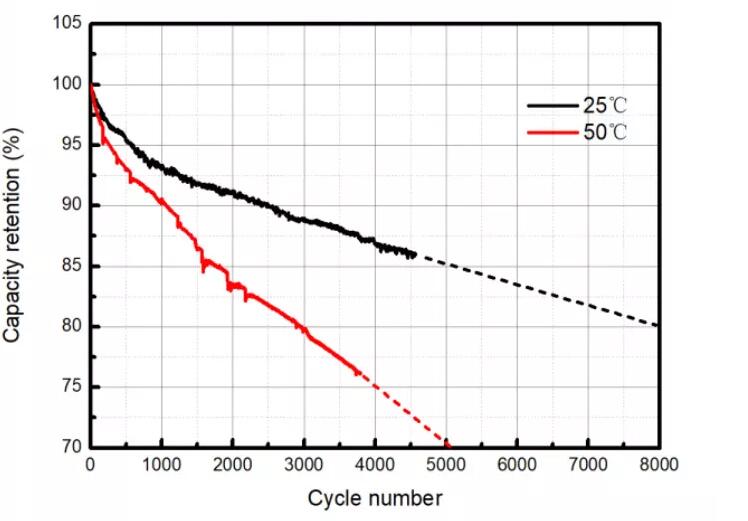

Over 6000 cycle life

Battery using Cautions:

1.Do not expose to, dispose of the battery in fire.
2.Do not put the battery in a charger or equipment with wrong terminals connected.
3.Avoid shorting the battery
4.Avoid excessive physical shock or vibration.
5.Do not disassemble or deform the battery.
6.Do not immerse in water.
7.Do not use the battery mixed with other different make, type, or model batteries.
8.Keep out of the reach of children.

Why Choose us:

Technology

All-weather applicability (-30~60℃)
Highly safe battery design technology with the newest electrolyte and separator technology applie
Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
