UN38.3 Golf Cart LFP Prismatic Cell 6000 Cycles 105Ah 3.2V Lifepo4

Ask Lasest Price
Model Number :	LFP105Ah
Certification :	UN38.3, MSDS, IEC62133, UL
Payment Terms :	T/T
Supply Ability :	10'000Pieces daily
Delivery Time :	within 10days

Add to Cart

Product Details
Company Profile

UN38.3 Golf Cart LFP Prismatic Cell 6000 Cycles 105Ah 3.2V Lifepo4

LFP prismatic cell Lithium Iron Phosphate battery features

1. Lighter in weight, heavier on power than lead acid battery.
2. Use a grade cells. More than 6000 cycle times.
3. Max discharge continuous current, 1C TO 3C 5C.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. batteries have passed different safety tests.

6. Optional: Lithium Battery built with BMS

Lifepo4 prismatic cell 3.2V 105Ah LFP Pouch cell Specifications

Battery Type	LFP battery prismatic cell
Model	105 AH
Dimension	H200W130T36mm
Nominal capacity	105Ah
Nominal voltage	3.2v
AC Impedance Resistance	0.5mΩ
Discharging cut-off Voltage	1C
Pulse discharge rate(30s)	3C
Price	wholesale price
Customize	yes
Weight	1.9kg
Cycle life	more than 6000 times
Operating temperature	Discharge temperature range: -20°C—60°
Operating temperature	Charge temperature range: 0°C—45°C

Other hot sale lithium Iron Phosphate cylindrical rechargeable battery cell.

Model No.	Standard Voltage	Standard Capacity(Ah)	Impendence (mΩ)	Weight(Kg)	Height(mm)	Width(mm)	Thickness(mm)
LFP50	3.2V	50Ah	≤0.7mΩ	1.4Kg	185.3±0.5	135.3±0.5	29.3±0.5
LFP80	3.2V	80Ah	≤0.5mΩ	1.68Kg	170±0.5	130.3±0.5	36.7±0.5
LFP90	3.2V	90Ah	≤0.5mΩ	2.0Kg	200.5±0.5	130.3±0.5	36.7±0.5
LFP100	3.2V	100Ah	≤0.5mΩ	1.92Kg	118±0.5	160±0.5	49.9±0.5
LFP105	3.2V	105Ah	≤0.5mΩ	1.98Kg	200.5±0.5	130±0.5	36.7±0.5
LFP173	3.2V	173Ah	≤0.5mΩ	3.25Kg	207.2±0.5	173.9±0.5	41.0±0.5
LFP230	3.2V	230Ah	≤0.25mΩ	4.11Kg	207.0±0.5	173.9±0.5	54.0±0.5
LFP280	3.2V	280Ah	≤0.25mΩ	5.42Kg	207.5±0.5	173.7±0.5	72.0±0.5
LFP304	3.2V	304Ah	≤0.5mΩ	5.49Kg	208.8±0.5	173.5±0.5	72.0±0.5

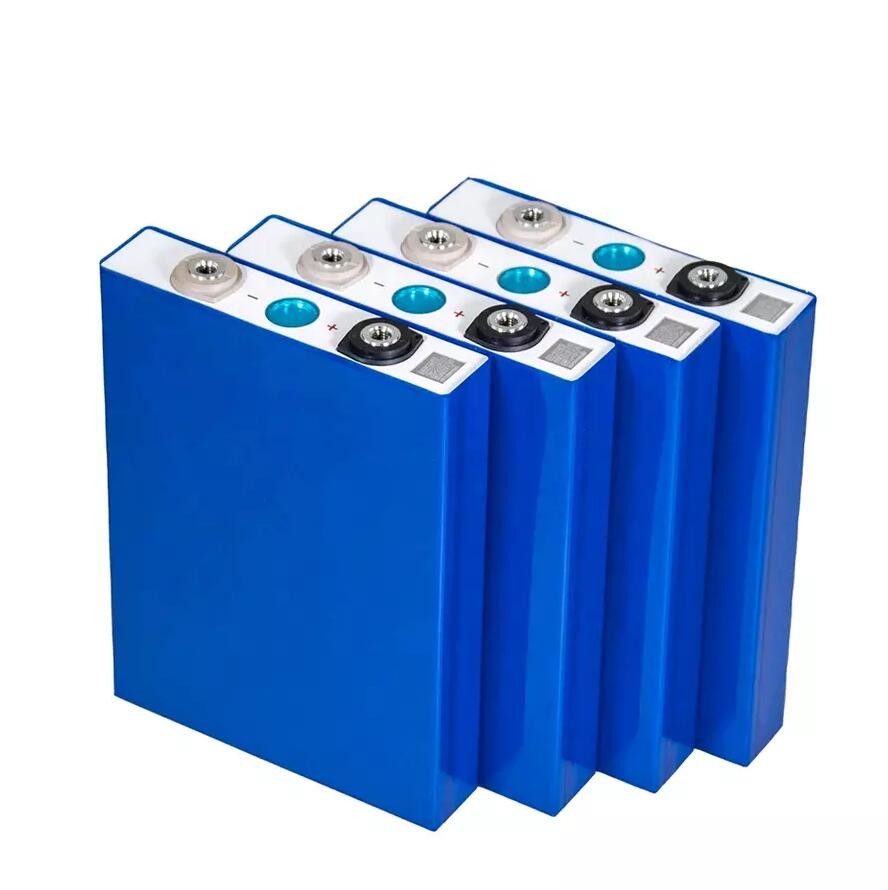

Images for: LiFePO4 105AH Prismatic LiFePO4 Battery Cell

UN38.3 Golf Cart LFP Prismatic Cell 6000 Cycles 105Ah 3.2V Lifepo4

Over 6000 cycle life

Why Choose us:

Technology

All-weather applicability (-30~60℃)
Highly safe battery design technology with the newest electrolyte and separator technology applie
Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
