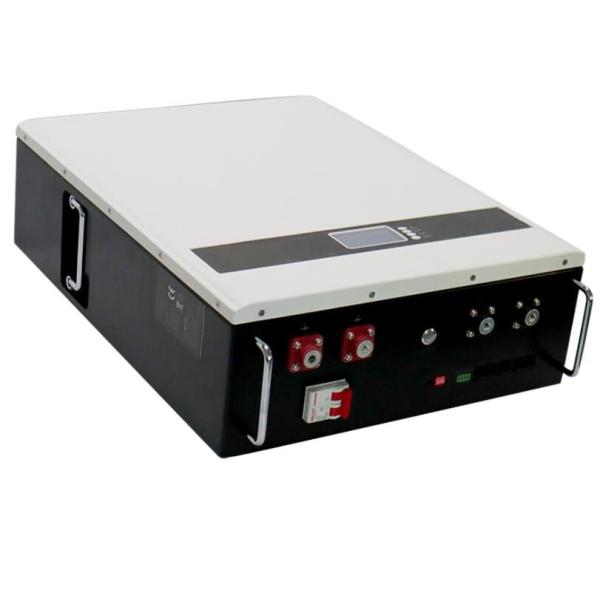

48V Solar Energy Storage Batteries 5KWh Household Lithium Iron
phosphate battery pack
48V 100AH LifePO4 Battery 5120WH Power
Nominal Voltage :48V(51.2V)
Nominal Capacity :100AH
Capacity @20A :5HR
Energy :5120Wh
Resistance :≤20mΩ
Efficiency :99%
Self Discharge :＜ 3% per monthDimensions(L*W*H) :550X350X200mm
Weight:48KG
Terminal Type:Anderson
Case Material:Metal
Enclosure Protection:IP44
Discharge Temperature:-20ºC ~60 ºC
Charge Temperature:0 ºC~ 45 ºC
Storage Temperature:-20ºC to 40 ºC
BMS High Temperature:80 ºC
Reconnect Temperature:50 ºC
Wall mounted /Cabinet Solar Energy storage Battery 51.2V 100Ah rechargeable Lifepo4 battery pack
FAQ for Lifepo4 48V 100Ah lithium iron phosphate battery for solar
storage system:
Q1. Can we put different LiFePO4 battery pack in parallel or series
by ourself?
A1: Yes. The battery can be put in parallel or series by customers.
But there are few tips we need to pay attention:
1. Make sure the voltage of each battery are same before put
inparallel. If they are not same, charge them to the same rate.
2. Don't put discharged battery and undischarged battery in
parallel. This may reduce the capacity of the whole battery pack.
3. Advise us the capacity of the whole pack if you plan to put them
in series. We will choose the suitable BMS for each battery. 4. If
you are not professional in parallel and series batteries, please
don't handle the battery by yourself. It may cause danger and hurt
the cycle life of battery.
Q2. Does your battery pack include BMS? Can we use it for car?
A2: Yes, our battery pack include BMS, you can use it for low speed
car only or aux. power for standard car. Do not use it for standard
car directly, that will need more complex design BMS for the pack.
Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:
| Lead Acid Replacement LiFePO4 Battery Pack |
Voltage | Typical Capacity | Charge | Discharge | Dimension (mm) with case | Weight(Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
|
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
|
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
|
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
|
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
|
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
|
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
|
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
|
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
|
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
|
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
|
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
|
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
|
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
|
Lifepo4 rechargeable battery packs for other applications.
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
