3.7V 43ah 50ah 60ah 503048 Lithium Polymer Battery Pack 500times Cycle Life
KC 3.7v 43ah Lithium Polymer 803035 Li-Polymer 50ah 60ah 3.7v lipo Battery
NO. | Item | Specifications |
1 | Minimum capacity | *43Ah | 0.33C@4.30~2.75V@25±2℃ |
2 | Typical capacity | *45Ah | 0.33C@4.30~2.75V@25±2℃ |
3 | ACIR@1KHz | ≤1.0mΩ | 58%SOC@25±2℃ |
4 | Weight | 645±30g |
5 | Charge cut-off voltage | 4.30V |
6 | Discharge cut-off voltage | 2.75V |
7 | Nominal voltage | 3.7V | 0.33C@4.30~2.75V@25±2℃ |
8 | | | 0~5℃ | 0.05C(max) to 4.20V |
6~15℃ | 0.2C(max) to 4.20V |
16~24℃ | 0.5C(max) to 4.30V |
25~45℃ | 1.0C(max) to 4.30V |
46~50℃ | 0.5C(max) to 4.20V or 0.2C to 4.25V |
Discharge | -20~60℃ |
9 | Standard charge method | 0.33C CC to 4.30V,4.30V CV to 0.05C |
10 | Standard discharge method | 0.5C |
11 | Max charge current | 1.0C |
12 | Max discharge current | 3.0C |
13 | Storage temperature
(58%SOC state) | 12month | -10~25℃@80%RH max |
3month | -10~35℃@80%RH max |
1month | -10~45℃@80%RH max |
Other Lithium polymer Battery with KC certificates list hot saled
in Korea market
| Model | Voltage | Capacity | Certificates |
| 252940 | 3.7V | 260mAh | UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS |
| 301318 | 3.7V | 50mAh | KC/CB/UN38.3/MSDS |
| 301525 | 3.7V | 80mAh | CB/KC/UN38.3 |
| 302540 | 3.7V | 280mAh | KC/CE/FCC/ROHS/UN38.3/MSDS |
| 303030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 303450 | 3.7V | 500mAh | KC/CE/80℃ high temperature report/CQC |
| 321618 | 3.7V | 75mAh | KC/IEC62133/CE/UN38.3/MSDS |
| 331422 | 3.7V | 80mAh | KC/CE/PSE/UN38.3/MSDS |
| 351325 | 3.7V | 90mAh | KC/ROHS/FCC/UN38.3/MSDS |
| 351422 | 3.7V | 80mAh | KC |
| 380926 | 3.7V | 60mAh | KC/IEC62133/UN38.3/MSDS |
| 400920 | 3.7V | 55mAh | UL/KC/MSDS |
| 401020 | 3.7V | 55mAh | KC/CE |
| 401020 | 3.7V | 60mAh | KC |
| 401025 | 3.7V | 70mAh | KC/CE |
| 401119 | 3.7V | 55mAh | KC/CE |
| 401121 | 3.7V | 55mAh | KC/IEC62133/ROHS/UN38.3/MSDS |
| 401214 | 3.7V | 50mAh | KC/CE |
| 401230 | 3.7V | 120mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
| 402030 | 3.7V | 185mAh | UL/KC/IEC62133/CE/FCC/UN38.3/MSDS |
| 402525 | 3.7V | 250mAh | KC/CE |
| 403030 | 3.7V | 300mAh | KC/CE/UN38.3/MSDS |
| 432526 | 3.8V | 320mAh | KC/CB/IEC62133/UN38.3/MSDS |
| 451220 | 3.7V | 80mAh | KC |
| 481153 | 3.7V | 300mAh | KC/CE/UN62133/UN38.3/MSDS |
| 481159 | 3.7V | 300mAh | KC/CE/EN62133/UN38.3/MSDS |
| 501012 | 3.7V | 45mAh | KC/CE |
| 501020 | 3.7V | 80mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
| 501040 | 3.7V | 150mAh | KC |
| 501130 | 3.7V | 150mAh | UL/KC/CB/CE/ROHS/UN38.3/MSDS |
| 501220 | 3.7V | 100mAh | UL/KC/CE/ROHS/MSDS |
| 501235 | 3.7V | 160mAh | KC/CE/ROHS/MSDS |
| 501332 | 3.7V | 200mAh | KC/ROHS/MSDS |
| 501535 | 3.7V | 240mAh | KC/CE |
| 502030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 502035 | 3.7V | 300mAh | UL/KC/CE/ROHS/IEC62133/FCC/UN38.3/MSDS |
| 503035 | 3.7V | 500mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
| 503048 | 3.7V | 750mAh | UL/KC/CE/ROHS/80℃ high temperature test/MSDS |
| 503450 | 3.7V | 1000mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 504065 | 3.7V | 1500mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 522728 | 3.7V | 460mAh | KC |
| 551245 | 3.7V | 250mAh | UL/KC/IEC62133/EN62133/PSE/FCC/ROHS |
| 553443 | 3.7V | 900mAh | KC/PSE/UN38.3/MSDS |
| 555056 | 3.7V | 2100mAh | KC |
| 601430 | 3.7V | 210mAh | KC/CE/ROHS |
| 601750 | 3.7V | 500mAh | KC |
| 602030 | 3.7V | 300mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 602035 | 3.7V | 400mAh | KC/CE |
| 602040 | 3.7V | 450mAh | UL/KC/CE/ROHS |
| 602045 | 3.7V | 500mAh | KC/CE/FCC |
| 602540 | 3.7V | 600mAh | KC/FCC/IEC62133/UN38.3/MSDS |
| 603030 | 3.7V | 500mAh | KC/CE/EN62133/ROHS/UN38.3/MSDS |
| 603258-4S | 14.8V | 1200mAh | KC/CB/IEC62133 |
| 603450 | 3.7V | 1100mAh | UL/KC/CE/IEC62133/UN38.3/MSDS |
| 603450 | 3.7V | 1200mAh | UL/CE/KC |
| 651248 | 3.7V | 330mAh | KC/EN62133 |
| 653040 | 3.7V | 800mAh | KC/MSDS |
| 702030 | 3.7V | 380mAh | KC/CE |
| 702035 | 3.7V | 380mAh | KC |
| 702040 | 3.7V | 500mAh | KC/CE |
| 702040 | 3.7V | 600mAh | KC/MSDS |
| 702050 | 3.7V | 750mAh | KC/CE |
| 702525 | 3.7V | 400mAh | KC |
| 702535 | 3.7V | 600mAh | KC |
| 703045 | 3.7V | 900mAh | KC/UN38.3/MSDS |
| 751818 | 3.7V | 220mAh | UL/KC/EN62133/ROHS/UN38.3/MSDS |
| 801350 | 3.7V | 500mAh | KC/UN38.3/MSDS |
| 801630 | 3.7V | 300mAh | KC/CE |
| 802025 | 3.7V | 400mAh | KC/UN38.3/MSDS |
| 802540 | 3.7V | 800mAh | KC/FCC/CE/ROHS |
| 803040 | 3.7V | 1000mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
| 803048 | 3.7V | 1200mAh | KC/CE |
| 804459 | 3.7V | 2400mAh | KC/CB/UN38.3/MSDS |
| 8233125 | 3.7V | 5500mAh | KC/UN38.3/MSDS |
| 901332 | 3.7V | 300mAh | KC/CE |
| 902030 | 3.7V | 480mAh | KC/MSDS |
| 902030 | 3.7V | 500mAh | KC/CE/ROHS/UN38.3/MSDS |
| 902040 | 3.7V | 700mAh | KC/CE |
| 902630 | 3.7V | 700mAh | KC |
| 972829 | 3.7V | 850mAh | KC |
| 102050 | 3.7V | 1000mAh | UL/KC/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 103035 | 3.7V | 1100mAh | KC/CE |
| 103040 | 3.7V | 1200mAh | CB/KC/IEC62133/EN62133/CE/FCC/ROHS/UN38.3/MSDS |
| 103450 | 3.7V | 1800mAh | UL/KC |
| 105050 | 3.7V | 3000mAh | CB/KC/IEC62133/CE
|
Product performance description
Battery thickness7.00mm length 295mm width 147mm weight 645g capacity 43Ah single piece of the main
material is lithium iron phosphate, the process is soft pack
laminated type, high energy density, high rate, the shell is made
of aluminum plastic film material, the overall weight is light.

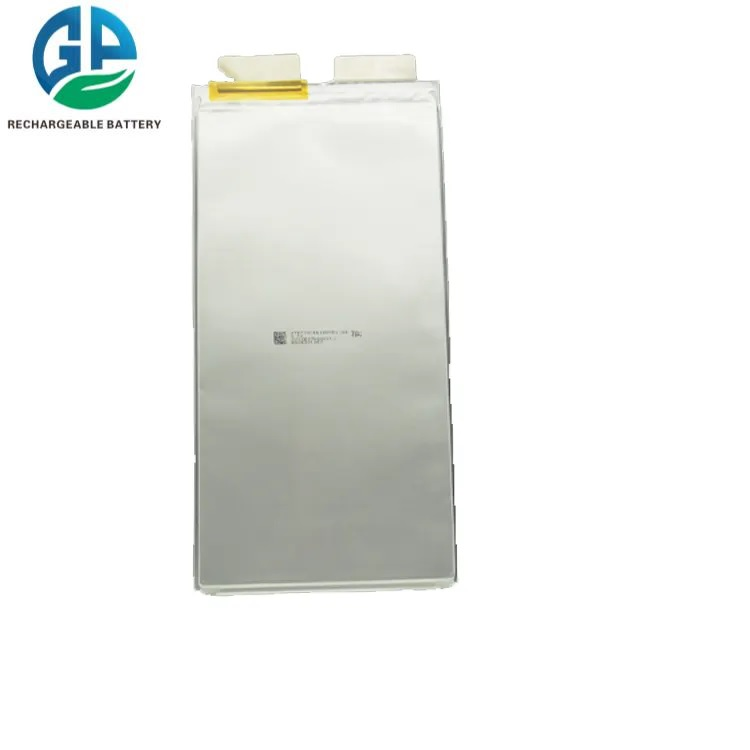

Lithium Polymer battery pack 3.7V 43Ah 503048 li-polymer
Rechargeable li-pol battery
Test Procedure and its Standard
| Item | Test method | Standard |
1 | Appearance | Visual | No Defects and Leakage |
2 | Dimension | Caliper for dimension | As item 4 |
3 | Weight | Balance | As item 3.3 |
4 | Shipment voltage | Voltmeter | 3.60~3.95V(58%SOC) |
5 | Initial Internal Impedance | Measure the AC impedance at 1kHz | ≤1.0mΩ (58% SOC) |
7 | Cycle Life (25±2℃, With splint ,Rest for 30 min between each
cycle.) | Charge: 0.33C CC charge to 4.30V, 4.30V CV charge to 0.05C cut-off;
Discharge: 1.0C CC discharge to 2.75V | ≥80%Initial capacity @1500 cycles |
9 | Leakage Test | The battery which is fully charged shall be stored at 60±2℃ and
85±5% RH for 7 days. | No Leakage. |
10 | H/L Temp. Characteristic
(Hold for 2h@55℃ or 4h@-20℃ after full charging) | Charge: 0.5C CC charge to 4.30V, 4.30V CV charge to 0.05C cut-off
at 25±2℃
Discharge: 1.0C CC discharge to 2.5V at -20±2℃ ; 1.0C CC discharge
to 2.75V at 55±2℃. | Discharge capacity rate:
*≥70%Initial capacity -20±2℃
*≥95%Initial capacity 55±2℃. |
Standard packaging for 3.7V 7.4V lithium ion polymer battery pack
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
