KC Approved 18650 Rechargeable Lithium Batteries 7.4V 1800 2000
2200mah
Rechargeable Lithium Batteries 18650 2S 7.4V 2200mAh li ion battery
cell
| Item | Specifications |
| Nominal Capacity | 2200mAh 0.2C Discharge |
| Minimum Capacity | 2100mAh 0.2C Discharge |
| Nominal Voltage | 7.4V |
| Charge Current | Standard Charge:0.5C
Rapid Charge:1.0C |
| Standard Charging Method | 0.5C CC(Constant Charge)charge to 8.4V, then CV(Constant Voltage
8.4V)charge till charge current decline less than 0.01C |
| Charging Time | Standard Charging: Approx. 5hours
Rapid Charging: Approx. 2.5hours |
| Max. Charge Current | Constant Current 1C5A Constant Voltage 8.4V 0.01C5A Cut-off |
| Max. Discharge Current | Constant Current 1.0C5A End Voltage 8.4V |
| Standard discharge Current | Constant Current 0.2C5A End Voltage 7.4V |
| Discharge Cut-off Voltage | 6.4V |
| Charge Cut-off Voltage | 8.4V |
| Initial Impedance | Less than 100mo |
| Weight | 100g |
| Operating Temperature | Charging:0-45
Discharging:-20-60 |

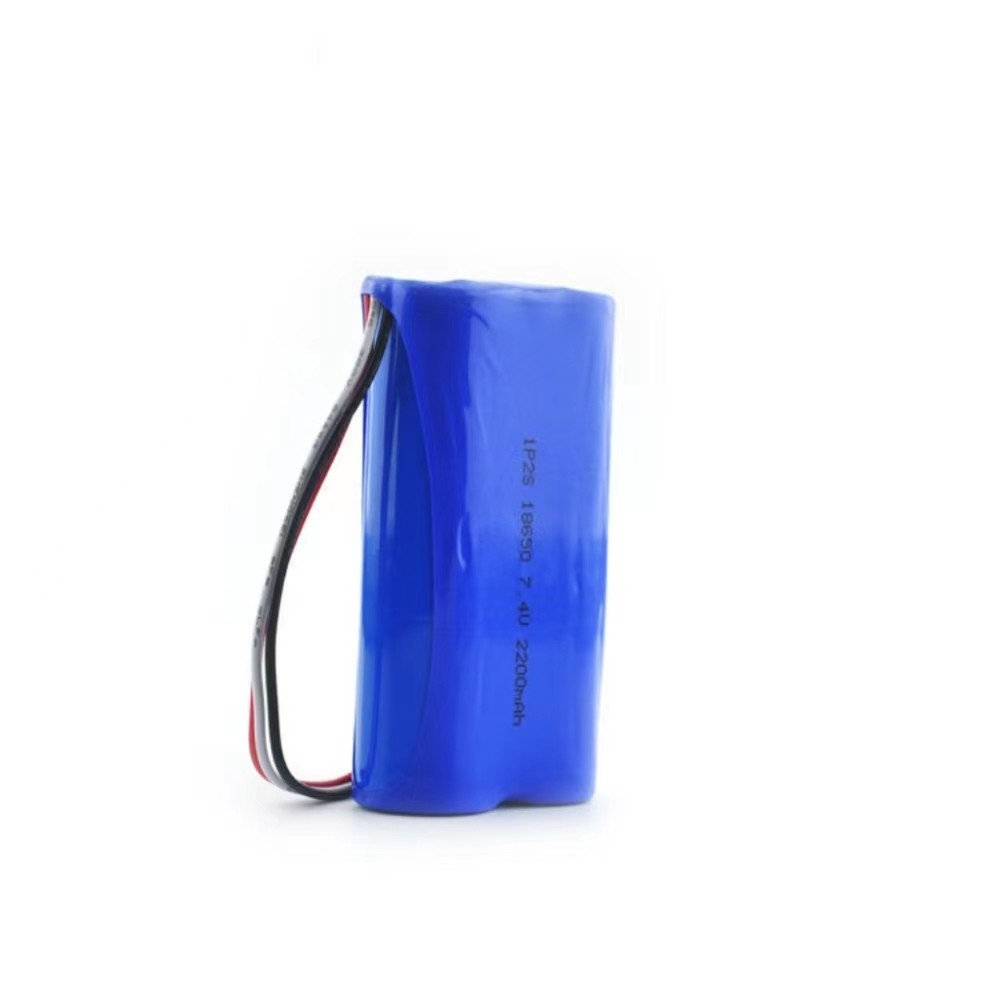

Detailed images: Rechargeable Lithium batteries 7.4V 2200mAh
Main Application for 7.4V, 11.1V 18650 rechargeable lithium
batteries
Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
Portable office devices: Notebook, PDA, portable electrograph, portable printer.
Video devices: GPS, digital camera, camcorder, portable DVD, portable television,
MP3, MP4.
Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
Illuminate devices: miner lamp, searchlight. Others: toys, models.
Battery using instruction:
Environment Friendly - Clean and Green energy poses no pollution on
our environment
Do not overcharge or over-discharge batteries to avoid the decrease
of battery service life.
Do not short circuit, incinerate and disassemble battery.
Do not impact the battery.
Do not drop of cause unnecessary shocks to the battery.
Do not carry loose batteries in a pocket or purse with metal
objects like coins, paper clips etc.
Do not use inferior charger to recharge this battery in case of
damaging the battery.
Place battery away from children
Customized 3.7V, 7.4V, 11.1V, 14.8V lithium ion battery packs
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list |
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
