High capacity INR18650 Lithium ion Battery 3.7V 5200mAh cylinrical
battery
| No. | Item | Specification | Mark | | 1 | Nominal Capacity | 5200mAh | 0.2C discharge | | 2 | Minimum capacity | 5200mAh | 0.2C discharge | | 3 | Battery weight | 95g | / | | 4 | Nominal voltage | 3.7V | | | 5 | shipping voltage | >3.85V | | | 6 | Limited charging voltage | 4.2V | Voltage of constant current charge to constant voltage charge | | 7 | Standard Charging Method | CC-CV | 0.2C constant current current charge to 4.2V, then constant voltage
charge till current declines to 0.01C | | 8 | Cut-off Voltage | 2.75V | Load Voltage when discharge ended | | 9 | Standard Charging Current | 0.2C | constant current charge to 4.2 V, then constant voltage charge till
current declines to less than 0.01C | | 10 | Standard Charging Time | ≈6hours | | 11 | Rapid Charging Current | 1C | | 12 | Rapid Charging Time | ≈1.5hours | | 13 | Standard Discharging Current | 0.2c | constant current discharge to 3.0 V | | 14 | Max. Discharging Current | 1c | Continuous discharging current | | 15 | Operating Temperature Range | Charging:0~ 45℃; Discharging:-20 ~ 60℃ | | 16 | Operating humidity Range | ≤ 90%RH |
|

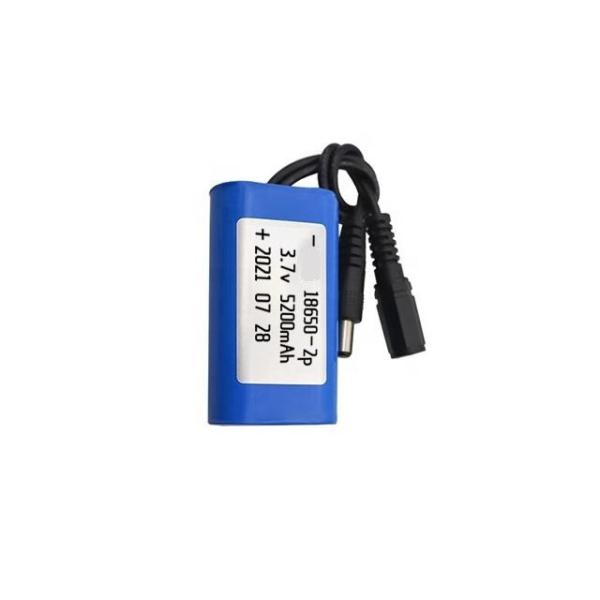

Detailed images: Rechargeable 18650 Lithium battery 3.7 volt
5200mAh
Customized 3.7V, 7.4V, 11.1V, 14.8V lithium ion battery packs
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list |
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
