3 Phase 5kw 10kw Household Solar Battery Storage All In One System
Hybrid Energy Storage System Long life Lifepo4 batteries 5KW~40KWH Movable Power Bank For Home
| All In One solar storage system | 1 layer | 2 layer | 3 layer |
| Battery specification | Model | 51.2V 200Ah | 51.2V 300Ah/400Ah | 51.2V 500Ah/600Ah |
| Energy | 10.24kWh | 15.36kWh/20.48kWh | 25.6kWh/30.72kWh |
| Operating Voltage Range | 43.2V~56.16V |
| Battery cell | Lithium iron phosphate battery/Lifepo4 battery |
| Life cycle | 6000times @ 80% DOD,25℃/0.5C |
| Battery Charge/Discharge current | 120A |

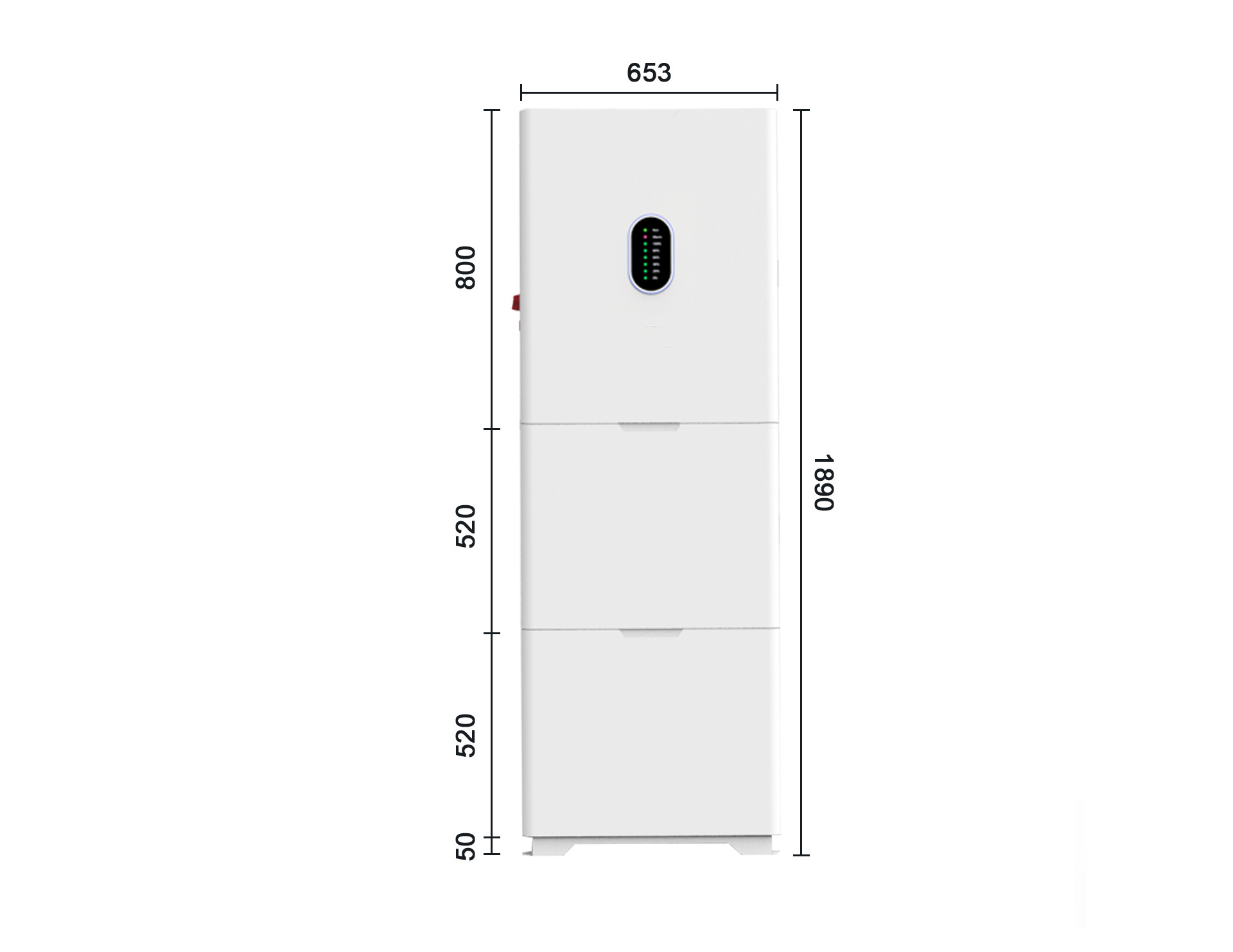

| Dimension (L*W*H) | 653*350*1370mm | 653*350*1890mm | 653*350*2410mm |
| Weight | 200Kg | 260Kg/320Kg | 380Kg/440Kg |
| AC output | Nominal AC output power | 6KW |
| Rated AC voltage | 220V |
| AC Output AC voltage range | 150-300V |
| Rated grid frequency | 50/60HZ |
| Grid connecion | single phase |
| Display | LCD |
| Communication | Communication | Modbus, RS485, WIFI,4G |
| General Data | Operating temperature | -20℃~55℃ |
| Cooling | Natural convection and fan cooling |
| Certification | Certificates | CB, IEC/EN62109,EN50549-1,UN38.3, MSDS |
5KWH to 20KWH 3U Rack Cabinet Energy Storage system products
details
Product Features
The whole module is non-toxic, non-polluting easy installation and
maintenance
LiFeP04 Battery with safety performance, long life time. high power
efficiency
- Battery management system (BMS)
BMS has protection functions including over-discharge, over-charge,
over-current, and high/low temperature protection.
Multiple battery modules can be in parallel for expanding capacity
and power.
RS485/CANBUS/Bluetooth available, supporting remote monitoring,
compatible with global mainstream inverters
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
