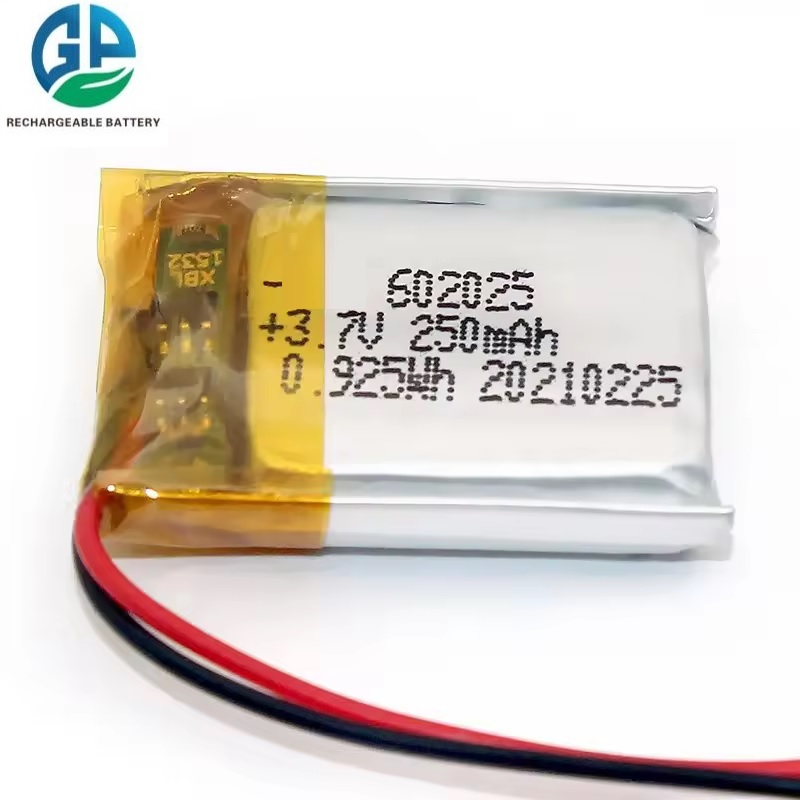

IEC62133 KC Lithium Polymer Battery Pack 602025 3.7V 250mAh LiPo
Do not submerge the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong
terminals connected.
Model | 602025 |
Material | Lithium ion polymer battery |
Normal Capacity(0.2C) | 250mAh |
Minimum Capacity(0.2C) | 610mAh |
Energy: | 0.925wh |
Normal Voltage: | 3.7V |
Delivery Voltage: | 3.7V ~ 3.9V |
| 0.2C CC(constant current) charge to 4.2V, then CV(constant
voltage4.2V) charge till charge current decline to ≦ 0.02C |
Max Charging Current: | 1C |
Max Discharging Current: | 1C |
Over-Discharging Current: | 3.0V |
Ambient Temperature: | Charging: 10℃ ~ 50℃ |
Discharging: -10℃ ~ 50℃ |
Cell Exterior Temperature: | Charging: 10℃ ~ 45℃ |
Discharging: -10℃ ~ 50℃ |
Storage Tem ( At 50% SOC and specified temp, recoverable capacity
in % & time): | -10℃ ~ 45℃ (1months ≥ 90%) |
-10℃ ~ 35℃ (3months ≥ 85%) |
-10℃ ~ 25℃ (12months ≥ 80%) |
Cycle Life(at 15℃ ~ 35℃ ) | ≥ 300 times, more than 80% at 0.5C discharge |
Pack Weight | Approx. 5g |
KC IEC62133 3.7 volt li polymer rechargeable batteries 250mAh customized li ion polymer battery
Li polymer battery pack widely used in:
GPS, POS Terminal, Wireless headset, Communication Tool, Heating
Blanket Smart Phone
Learning Tools, Medical Device, Personal Care Scanner Vaccum
Packaging, Lamp, Monitor
Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie,
Power Bank, Camera
Shenzhen Gold Power Energy have over 1000models lithium polymer
batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds
of applications.
Following are some of hot-sale models for your reference.
| Model | Cell Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |
Lithium Polymer battery pack 3.7V 250mAh 602025 li polymer
Rechargeable battery
Standard packaging for 3.7V 7.4V lithium polymer battery pack
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
