Rechargeable Battery Usage Instructions:
A. Charge
1. Charge current
Charging current should be less than the maximum value specified in
the Product Specification.
Charging with higher current than recommended value may cause
damage to cells’ electrical,
mechanical, and safety performance and could lead to heat generation or
leakage.
2. Charge Voltage
Charging shall be done by voltage less than that specified in the
Product Specification (4.2V/cell). Charging
beyond 4.3V, which is the absolute maximum voltage, must be
strictly prohibited. The charger and protection
circuit of battery pack shall be designed to comply with this
condition. It is very dangerous that"&" charging
with higher voltage than the maximum value and may cause damage to the
cell electrical, mechanical safety
performance and could lead to heat generation or leakage.
3. Charging temperature
The cell shall be charged within the specified temperature range in
the Product Specification.
4. Prohibition of Reverse Charge
Reverse charge is prohibited. Cells shall be connected correctly.
The polarity has to be confirmed before wiring.
In case of the cell is connected improperly, the cell cannot be
charged. Simultaneously, the reverse charging
may cause damage to the cell which may lead to degradation of cell
performance and damage the cell safety,
and could cause heat generation or leakage.
B Discharge
1. Discharge Current
The cell shall be discharged at less than the maximum discharge
current specified in the Product Specification.
High discharging current may reduce the discharge capacity
significantly or cause over-heat.
2. Discharge Temperature
The cell shall be discharged within the temperature range specified
in the Product Specification.
3. Over-Discharge
It should be noted that cells would be at an over-discharged status
due to self-discharge characteristics
in case they were not used for a long time. In order to prevent
over-discharging, cells shall be charged
periodically to maintain the voltage between 3.7V and3.9V. Over-discharging may
cause the loss of
cell performance, characteristics, or battery functions.
C Storage
If the Cell is stored for a long time, the cell’s storage voltage
should be 3.7~3.9V and the cell is to be stored in a
condition as Item. 4.11.
D Handling of Cells
1.Consideration of strength of film package
Easily damaged by sharp edge parts such as nail and needle, so
don’t strike by those sharp parts.
Sealed edge may be damaged by heat above 100°C, bend or fold sealed edge.
2.Short
Don’t bend the tabs.Short terminals of cells is strictly
prohibited, it may damage cells, even result in safety accident.

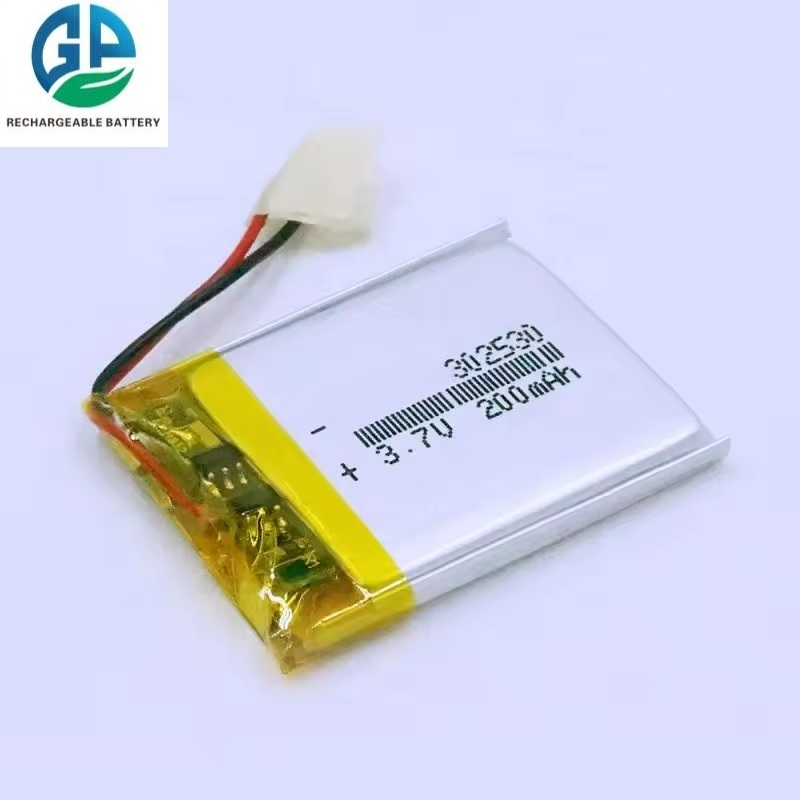

3.7V 200mah 302530 Lithium Polymer Battery Pack 500times Cycle Life
KC 3.7v 200mah Lithium Polymer 302530 Li-Polymer 200mah 3.7v lipo
Battery
Items | Parameter | Battery Model | 302530 | Battery Size | 3.0mm(T)*25mm(W)*30mm(L) | Nominal Voltage | 3.7V | Minimum capacity | 200mAh | Charging voltage | 4.2V | Discharging cut-off voltage | 2.75V | Standard charging | 40mA (0.2C) /4.2V | Standard discharging | 40mA (0.2C)/2.75V | | constant discharging: 200mA (1.0C)/2.75V | peak discharging: 400mA (2.0C)/2.75V | Shipment voltage | 3.85V | Operating temperature | Charge: 0°C~45°C | Discharge: -20°C~60°C | Visual Inspection | There should not be any remarkable scratches,cracks,
bolts, cauterization, deformations, swelling, leakage
and so on the surface of the cell. |
|
Application of li polymer battery pack
1.Telecommunication: cellular phone, web phone, interphone,
earphone.
2.Portable office devices: Notebook, PDA, portable electrograph,
portable printer.
3.Video devices: GPS, digital camera, camcorder, portable DVD,
portable television, MP3, MP4.
4.Portable exchange devices: POS, Handy, Fingerprint machine,
portable stock machine.
5.Illuminate devices: miner lamp, searchlight.
6.Others: toys, models.
Other Lithium polymer Battery with KC certificates list hot saled
in Korea market
| Model | Voltage | Capacity | Certificates |
| 252940 | 3.7V | 260mAh | UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS |
| 301318 | 3.7V | 50mAh | KC/CB/UN38.3/MSDS |
| 301525 | 3.7V | 80mAh | CB/KC/UN38.3 |
| 302540 | 3.7V | 280mAh | KC/CE/FCC/ROHS/UN38.3/MSDS |
| 303030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 303450 | 3.7V | 500mAh | KC/CE/80℃ high temperature report/CQC |
| 321618 | 3.7V | 75mAh | KC/IEC62133/CE/UN38.3/MSDS |
| 331422 | 3.7V | 80mAh | KC/CE/PSE/UN38.3/MSDS |
| 351325 | 3.7V | 90mAh | KC/ROHS/FCC/UN38.3/MSDS |
| 351422 | 3.7V | 80mAh | KC |
| 380926 | 3.7V | 60mAh | KC/IEC62133/UN38.3/MSDS |
| 400920 | 3.7V | 55mAh | UL/KC/MSDS |
| 401020 | 3.7V | 55mAh | KC/CE |
| 401020 | 3.7V | 60mAh | KC |
| 401025 | 3.7V | 70mAh | KC/CE |
| 401119 | 3.7V | 55mAh | KC/CE |
| 401121 | 3.7V | 55mAh | KC/IEC62133/ROHS/UN38.3/MSDS |
| 401214 | 3.7V | 50mAh | KC/CE |
| 401230 | 3.7V | 120mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
| 402030 | 3.7V | 185mAh | UL/KC/IEC62133/CE/FCC/UN38.3/MSDS |
| 402525 | 3.7V | 250mAh | KC/CE |
| 403030 | 3.7V | 300mAh | KC/CE/UN38.3/MSDS |
| 432526 | 3.8V | 320mAh | KC/CB/IEC62133/UN38.3/MSDS |
| 451220 | 3.7V | 80mAh | KC |
| 481153 | 3.7V | 300mAh | KC/CE/UN62133/UN38.3/MSDS |
| 481159 | 3.7V | 300mAh | KC/CE/EN62133/UN38.3/MSDS |
| 501012 | 3.7V | 45mAh | KC/CE |
| 501020 | 3.7V | 80mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
| 501040 | 3.7V | 150mAh | KC |
| 501130 | 3.7V | 150mAh | UL/KC/CB/CE/ROHS/UN38.3/MSDS |
| 501220 | 3.7V | 100mAh | UL/KC/CE/ROHS/MSDS |
| 501235 | 3.7V | 160mAh | KC/CE/ROHS/MSDS |
| 501332 | 3.7V | 200mAh | KC/ROHS/MSDS |
| 501535 | 3.7V | 240mAh | KC/CE |
| 502030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 502035 | 3.7V | 300mAh | UL/KC/CE/ROHS/IEC62133/FCC/UN38.3/MSDS |
| 503035 | 3.7V | 500mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
| 503048 | 3.7V | 750mAh | UL/KC/CE/ROHS/80℃ high temperature test/MSDS |
| 503450 | 3.7V | 1000mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 504065 | 3.7V | 1500mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 522728 | 3.7V | 460mAh | KC |
| 551245 | 3.7V | 250mAh | UL/KC/IEC62133/EN62133/PSE/FCC/ROHS |
| 553443 | 3.7V | 900mAh | KC/PSE/UN38.3/MSDS |
| 555056 | 3.7V | 2100mAh | KC |
| 601430 | 3.7V | 210mAh | KC/CE/ROHS |
| 601750 | 3.7V | 500mAh | KC |
| 602030 | 3.7V | 300mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 602035 | 3.7V | 400mAh | KC/CE |
| 602040 | 3.7V | 450mAh | UL/KC/CE/ROHS |
| 602045 | 3.7V | 500mAh | KC/CE/FCC |
| 602540 | 3.7V | 600mAh | KC/FCC/IEC62133/UN38.3/MSDS |
| 603030 | 3.7V | 500mAh | KC/CE/EN62133/ROHS/UN38.3/MSDS |
| 603258-4S | 14.8V | 1200mAh | KC/CB/IEC62133 |
| 603450 | 3.7V | 1100mAh | UL/KC/CE/IEC62133/UN38.3/MSDS |
| 603450 | 3.7V | 1200mAh | UL/CE/KC |
| 651248 | 3.7V | 330mAh | KC/EN62133 |
| 653040 | 3.7V | 800mAh | KC/MSDS |
| 702030 | 3.7V | 380mAh | KC/CE |
| 702035 | 3.7V | 380mAh | KC |
| 702040 | 3.7V | 500mAh | KC/CE |
| 702040 | 3.7V | 600mAh | KC/MSDS |
| 702050 | 3.7V | 750mAh | KC/CE |
| 702525 | 3.7V | 400mAh | KC |
| 702535 | 3.7V | 600mAh | KC |
| 703045 | 3.7V | 900mAh | KC/UN38.3/MSDS |
| 751818 | 3.7V | 220mAh | UL/KC/EN62133/ROHS/UN38.3/MSDS |
| 801350 | 3.7V | 500mAh | KC/UN38.3/MSDS |
| 801630 | 3.7V | 300mAh | KC/CE |
| 802025 | 3.7V | 400mAh | KC/UN38.3/MSDS |
| 802540 | 3.7V | 800mAh | KC/FCC/CE/ROHS |
| 803040 | 3.7V | 1000mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
| 803048 | 3.7V | 1200mAh | KC/CE |
| 804459 | 3.7V | 2400mAh | KC/CB/UN38.3/MSDS |
| 8233125 | 3.7V | 5500mAh | KC/UN38.3/MSDS |
| 901332 | 3.7V | 300mAh | KC/CE |
| 902030 | 3.7V | 480mAh | KC/MSDS |
| 902030 | 3.7V | 500mAh | KC/CE/ROHS/UN38.3/MSDS |
| 902040 | 3.7V | 700mAh | KC/CE |
| 902630 | 3.7V | 700mAh | KC |
| 972829 | 3.7V | 850mAh | KC |
| 102050 | 3.7V | 1000mAh | UL/KC/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 103035 | 3.7V | 1100mAh | KC/CE |
| 103040 | 3.7V | 1200mAh | CB/KC/IEC62133/EN62133/CE/FCC/ROHS/UN38.3/MSDS |
| 103450 | 3.7V | 1800mAh | UL/KC |
| 105050 | 3.7V | 3000mAh | CB/KC/IEC62133/CE |
Lithium Polymer battery pack KC 3.7V 200mAh 302530 li-polymer
Rechargeable li-pol battery
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte
and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery,
lithium polymer battery, LiFePO4 battery, Solar Energy Storage
battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
