Small size mini Lithium Polymer Battery 3.7V Lipo Battery 302020
80mAh
Description: small lithium battery rechargeable polymer battery
3.7v 80mah 302020 use in Various electronic products |
Battery Type | Li-Polymer | Material | LiCoO2/NMC |
PN | 302020 | Voltage/Capacity | 3.7V/80mAh |
Weight | Approx 1.6g | Shape | Soft pack |
Dimensions | 3.1(T)x20.5(W)x22.5(L)mm MAX | Package | Inner Tray + Carton |
Cycle Life | ≥500 times | Warranty | 12 months |
| Charge Cut-off Voltage : 4.20V±0.05V |
Charging method: CC/CV |
Standard Charge Current : 16mA (0.2C) |
Max Charge Current: 80mA (1.0C) |
Discharge Info | Discharge Cut-off Voltage : 3.0V |
Max Constant Discharge Current : 80mA/Customized |
| Standard Charge: 0~+40℃ |
Standard Discharge: -20~+60℃ |
Production Lead Time | In stock: 5-7 working days; Out of stock: 20-25 working days |
Other Lithium polymer Battery with KC certificates list hot saled
in Korea market
| Model | Voltage | Capacity | Certificates |
| 252940 | 3.7V | 260mAh | UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS |
| 301318 | 3.7V | 50mAh | KC/CB/UN38.3/MSDS |
| 301525 | 3.7V | 80mAh | CB/KC/UN38.3 |
| 302540 | 3.7V | 280mAh | KC/CE/FCC/ROHS/UN38.3/MSDS |
| 303030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 303450 | 3.7V | 500mAh | KC/CE/80℃ high temperature report/CQC |
| 321618 | 3.7V | 75mAh | KC/IEC62133/CE/UN38.3/MSDS |
| 331422 | 3.7V | 80mAh | KC/CE/PSE/UN38.3/MSDS |
| 351325 | 3.7V | 90mAh | KC/ROHS/FCC/UN38.3/MSDS |
| 351422 | 3.7V | 80mAh | KC |
| 380926 | 3.7V | 60mAh | KC/IEC62133/UN38.3/MSDS |
| 400920 | 3.7V | 55mAh | UL/KC/MSDS |
| 401020 | 3.7V | 55mAh | KC/CE |
| 401020 | 3.7V | 60mAh | KC |
| 401025 | 3.7V | 70mAh | KC/CE |
| 401119 | 3.7V | 55mAh | KC/CE |
| 401121 | 3.7V | 55mAh | KC/IEC62133/ROHS/UN38.3/MSDS |
| 401214 | 3.7V | 50mAh | KC/CE |
| 401230 | 3.7V | 120mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
| 402030 | 3.7V | 185mAh | UL/KC/IEC62133/CE/FCC/UN38.3/MSDS |
| 402525 | 3.7V | 250mAh | KC/CE |
| 403030 | 3.7V | 300mAh | KC/CE/UN38.3/MSDS |
| 432526 | 3.8V | 320mAh | KC/CB/IEC62133/UN38.3/MSDS |
| 451220 | 3.7V | 80mAh | KC |
| 481153 | 3.7V | 300mAh | KC/CE/UN62133/UN38.3/MSDS |
| 481159 | 3.7V | 300mAh | KC/CE/EN62133/UN38.3/MSDS |
| 501012 | 3.7V | 45mAh | KC/CE |
| 501020 | 3.7V | 80mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
| 501040 | 3.7V | 150mAh | KC |
| 501130 | 3.7V | 150mAh | UL/KC/CB/CE/ROHS/UN38.3/MSDS |
| 501220 | 3.7V | 100mAh | UL/KC/CE/ROHS/MSDS |
| 501235 | 3.7V | 160mAh | KC/CE/ROHS/MSDS |
| 501332 | 3.7V | 200mAh | KC/ROHS/MSDS |
| 501535 | 3.7V | 240mAh | KC/CE |
| 502030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 502035 | 3.7V | 300mAh | UL/KC/CE/ROHS/IEC62133/FCC/UN38.3/MSDS |
| 503035 | 3.7V | 500mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
| 503048 | 3.7V | 750mAh | UL/KC/CE/ROHS/80℃ high temperature test/MSDS |
| 503450 | 3.7V | 1000mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 504065 | 3.7V | 1500mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 522728 | 3.7V | 460mAh | KC |
| 551245 | 3.7V | 250mAh | UL/KC/IEC62133/EN62133/PSE/FCC/ROHS |
| 553443 | 3.7V | 900mAh | KC/PSE/UN38.3/MSDS |
| 555056 | 3.7V | 2100mAh | KC |
| 601430 | 3.7V | 210mAh | KC/CE/ROHS |
| 601750 | 3.7V | 500mAh | KC |
| 602030 | 3.7V | 300mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 602035 | 3.7V | 400mAh | KC/CE |
| 602040 | 3.7V | 450mAh | UL/KC/CE/ROHS |
| 602045 | 3.7V | 500mAh | KC/CE/FCC |
| 602540 | 3.7V | 600mAh | KC/FCC/IEC62133/UN38.3/MSDS |
| 603030 | 3.7V | 500mAh | KC/CE/EN62133/ROHS/UN38.3/MSDS |
| 603258-4S | 14.8V | 1200mAh | KC/CB/IEC62133 |
| 603450 | 3.7V | 1100mAh | UL/KC/CE/IEC62133/UN38.3/MSDS |
| 603450 | 3.7V | 1200mAh | UL/CE/KC |
| 651248 | 3.7V | 330mAh | KC/EN62133 |
| 653040 | 3.7V | 800mAh | KC/MSDS |
| 702030 | 3.7V | 380mAh | KC/CE |
| 702035 | 3.7V | 380mAh | KC |
| 702040 | 3.7V | 500mAh | KC/CE |
| 702040 | 3.7V | 600mAh | KC/MSDS |
| 702050 | 3.7V | 750mAh | KC/CE |
| 702525 | 3.7V | 400mAh | KC |
| 702535 | 3.7V | 600mAh | KC |
| 703045 | 3.7V | 900mAh | KC/UN38.3/MSDS |
| 751818 | 3.7V | 220mAh | UL/KC/EN62133/ROHS/UN38.3/MSDS |
| 801350 | 3.7V | 500mAh | KC/UN38.3/MSDS |
| 801630 | 3.7V | 300mAh | KC/CE |
| 802025 | 3.7V | 400mAh | KC/UN38.3/MSDS |
| 802540 | 3.7V | 800mAh | KC/FCC/CE/ROHS |
| 803040 | 3.7V | 1000mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
| 803048 | 3.7V | 1200mAh | KC/CE |
| 804459 | 3.7V | 2400mAh | KC/CB/UN38.3/MSDS |
| 8233125 | 3.7V | 5500mAh | KC/UN38.3/MSDS |
| 901332 | 3.7V | 300mAh | KC/CE |
| 902030 | 3.7V | 480mAh | KC/MSDS |
| 902030 | 3.7V | 500mAh | KC/CE/ROHS/UN38.3/MSDS |
| 902040 | 3.7V | 700mAh | KC/CE |
| 902630 | 3.7V | 700mAh | KC |
| 972829 | 3.7V | 850mAh | KC |
| 102050 | 3.7V | 1000mAh | UL/KC/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 103035 | 3.7V | 1100mAh | KC/CE |
| 103040 | 3.7V | 1200mAh | CB/KC/IEC62133/EN62133/CE/FCC/ROHS/UN38.3/MSDS |
| 103450 | 3.7V | 1800mAh | UL/KC |
| 105050 | 3.7V | 3000mAh | CB/KC/IEC62133/CE |

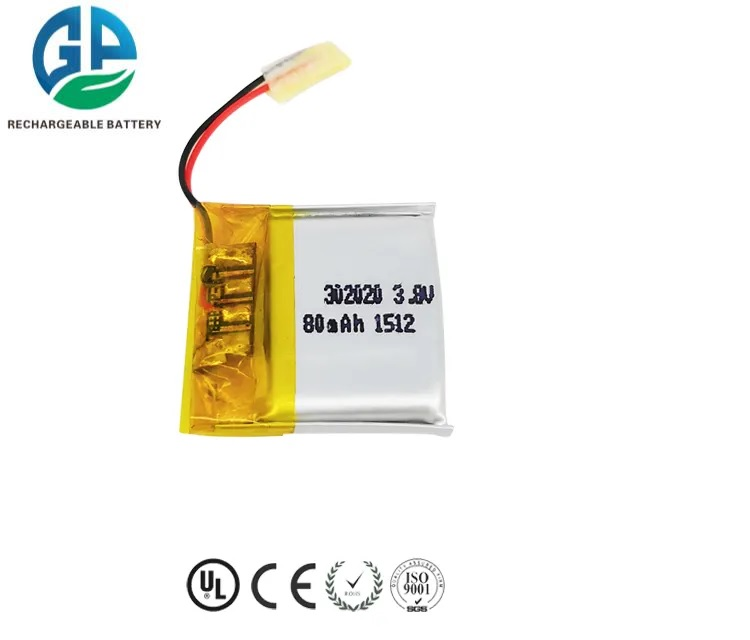

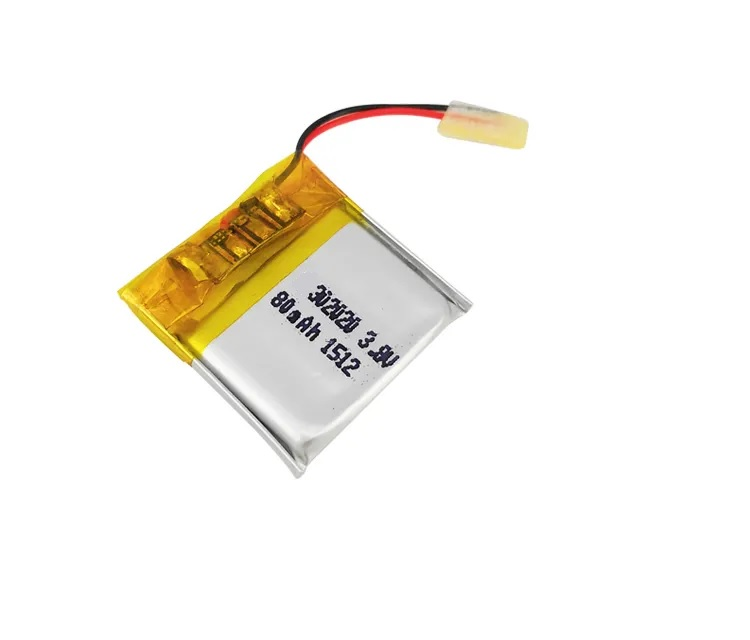

Images for Ultra small Li-Polymer 3.7V 302020 80mah lithium ion
polymer battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
FAQ:
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new
batteries are used with old ones, the difference in characteristics
of voltage, capacity, etc. may cause over-discharge of the battery
which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are
packed together?
A: If the batteries with different capacity or new and old
batteries are used together, leakage, zero voltage and so on might
happen. If the batteries are rechargeable and are being charged,
some batteries are overcharged and other batteries is not in full
charged state. During the discharge, some batteries cannot
discharge fully and other batteries might over discharge. This way,
the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of
the battery pack?
A: Short circuit or open circuit of the connector or wrong
connection, de-soldering or cold solder joint between the batteries
and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or
rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero
voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the
battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as
extremely low or high temperature.
R&D
Experienced R&D team with over 60 engineers and advanced
equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery
suppliers in China.
We have started to offer various batteries including Li polymer
battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
